Ospf con 1 area CISCO

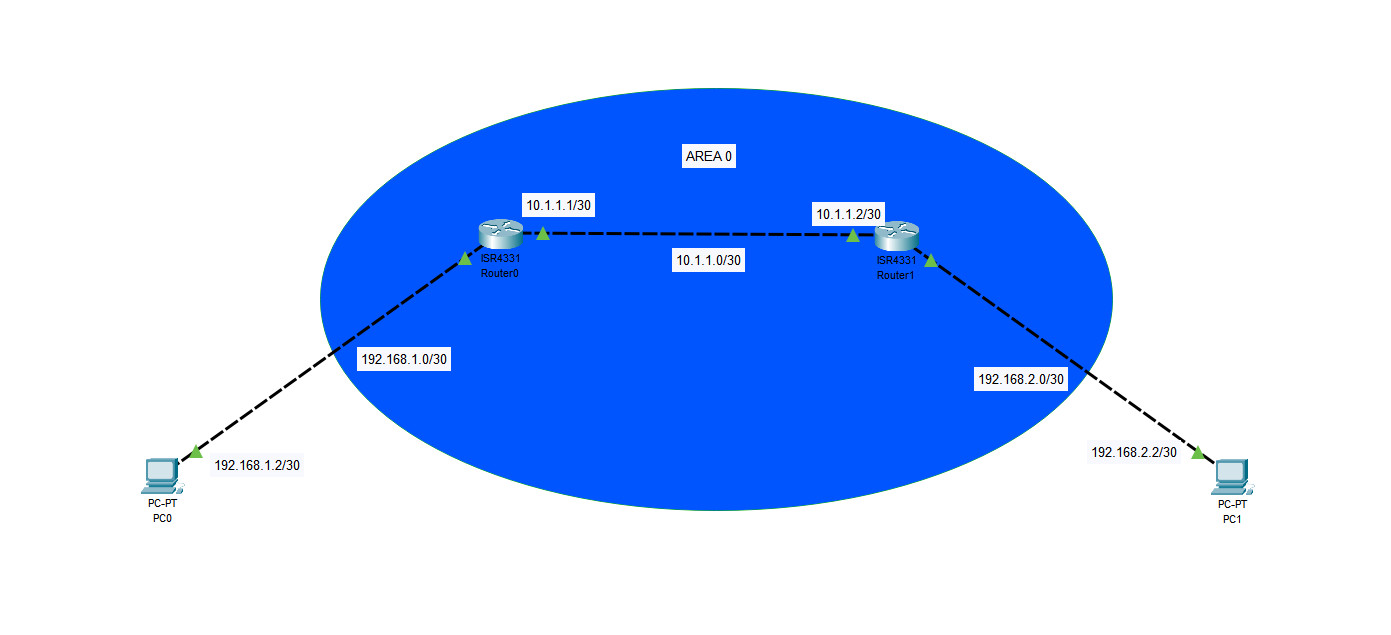

Archivo adjunto 3328

Configuracion OSPF con routers CISCO

1 Configuracion Router 1

Configuracion de interfaces

Router>enable

Router#configure terminal

Router(config)#interface gigabitEthernet 0/0/0

Router(config-if)#ip address 10.1.1.1 255.255.255.252

Router(config-if)#no shutdown

Router(config-if)#exit

Router(config)#interface gigabitEthernet 0/0/1

Router(config-if)#ip address 192.168.1.1 255.255.255.252

Router(config-if)#no shutdown

Router(config-if)#exit

2 Configuracion Router 2

Router>enable

Router#configure terminal

Router(config)#interface gigabitEthernet 0/0/0

Router(config-if)#ip address 10.1.1.2 255.255.255.252

Router(config-if)#no shutdown

Router(config-if)#exit

Router(config)#interface gigabitEthernet 0/0/1

Router(config-if)#ip address 192.168.2.1 255.255.255.252

Router(config-if)#no shutdown

Router(config-if)#exit

Configuracion OSPF

1 Router 1

Router(config-if)#interface gigabitEthernet 0/0/1

Router(config-if)#ip ospf 1 area 0

Router(config-if)#interface gigabitEthernet 0/0/0

Router(config-if)#ip ospf 1 area 0

Router(config-if)#exit

2 Router 2

Router(config-if)#interface gigabitEthernet 0/0/1

Router(config-if)#ip ospf 1 area 0

Router(config-if)#interface gigabitEthernet 0/0/0

Router(config-if)#ip ospf 1 area 0

Router(config-if)#exit

3 Confirmar que se haya establecido OSPF en el Router 1

Router#show ip ospf neighbor



Neighbor ID     Pri   State           Dead Time   Address         Interface

192.168.2.1       1   FULL/DR         00:00:39    10.1.1.2        GigabitEthernet0/0/0



Router#show ip route ospf

     192.168.2.0/30 is subnetted, 1 subnets

O       192.168.2.0 [110/2] via 10.1.1.2, 02:26:06, GigabitEthernet0/0/0

4 Confirmar que se haya establecido OSPF en el Router 2



Router#show ip ospf neighbor



Neighbor ID     Pri   State           Dead Time   Address         Interface

192.168.1.1       1   FULL/BDR        00:00:37    10.1.1.1        GigabitEthernet0/0/0

Router#show ip route ospf

     192.168.1.0/30 is subnetted, 1 subnets

O       192.168.1.0 [110/2] via 10.1.1.1, 02:28:25, GigabitEthernet0/0/0
