Sesion BGP ipv6 para clientes Residenciales

Sesion BGP ipv6 para clientes residenciales
Es un protocolo de enrutamiento utilizado para intercambiar información de enrutamiento entre diferentes sistemas autónomos (AS) en Internet. Un sistema autónomo es un conjunto de redes y routers bajo el control de una única entidad administrativa, como un proveedor de servicios de Internet (ISP) o una organización.

Descripción
Vamos a crear un laboratorio en EVE-ng de acuerdo a la topología para simular una red con BGP, configurando los ASN en cada RB para que se pueda establecer el pering.

Archivo adjunto 3933


1 Script de Router Alestra

/interface bridge

add name=lo interface=ether4

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=100 router-id=10.20.30.1

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=2001:4860:4860::8888/128 advertise=no comment="DNS GOOGLE" \

    interface=lo

add address=3000:aba:1010:1010:1010:2020:101:1 advertise=no interface=ether2

/routing bgp peer

add address-families=ipv6 default-originate=always name=CPE_BM \

    remote-address=3000:aba:1010:1010:1010:2020:101:2 remote-as=200

/system identity

set name=CarrierAlestra

/tool romon

set enabled=yes

2 Script de Router Borde Megabit

/interface bridge

add name=lo

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=200 router-id=10.20.30.2

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=3000:aba:1010:1010:1010:2020:101:2 advertise=no interface=ether2

add address=2906:666:3010:aaaa:bbbb:cccc:ddd:1 advertise=no interface=ether3

/ipv6 route

add distance=1 dst-address=2906:666:3020::/44 gateway=\

    2906:666:3010:aaaa:bbbb:cccc:ddd:2

add distance=1 dst-address=2906:666:3030::/44 gateway=\

    2906:666:3010:aaaa:bbbb:cccc:ddd:2

/routing bgp network

add network=2906:666:3000::/36 synchronize=no

/routing bgp peer

add address-families=ipv6 name=WAN_IPv6 remote-address=\

    3000:aba:1010:1010:1010:2020:101:1 remote-as=100

/system identity

set name=BordeMegabit

/tool romon

set enabled=yes

3 Script de Router EncoreUrbi

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 dhcp-server

add address-pool=POOL_CLIENTES interface=ether6 name=server1

/ipv6 pool

add name=POOL_CLIENTES prefix=2906:666:3030::/44 prefix-length=64

/ip dhcp-client

add disabled=no interface=ether1

/ip dns

set servers=2001:4860:4860::8888,2001:4860:4860::8844

/ipv6 address

add address=2906:666:3010:aaaa:bbbb:cccc:ddd:2 advertise=no interface=ether1

add address=::1000:10ff:fe09:1115 from-pool=POOL_CLIENTES interface=ether6

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/ipv6 route

add distance=1 gateway=2906:666:3010:aaaa:bbbb:cccc:ddd:1

/system identity

set name=EncoreUrbi

/tool romon

set enabled=yes

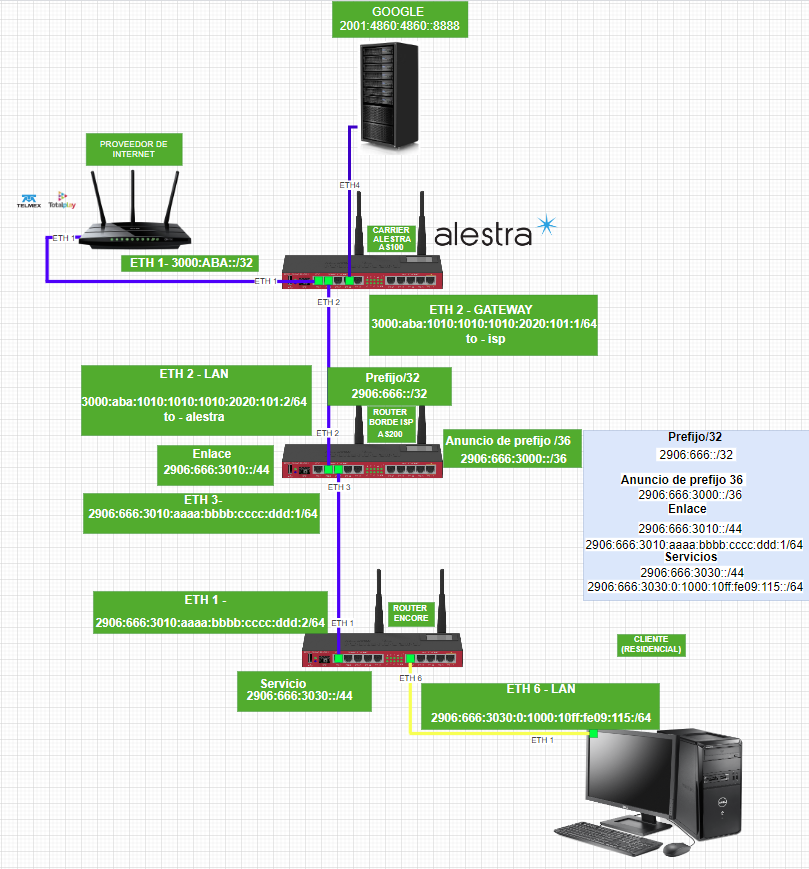

Laboratorio en EVE-NG

Archivo adjunto 3935

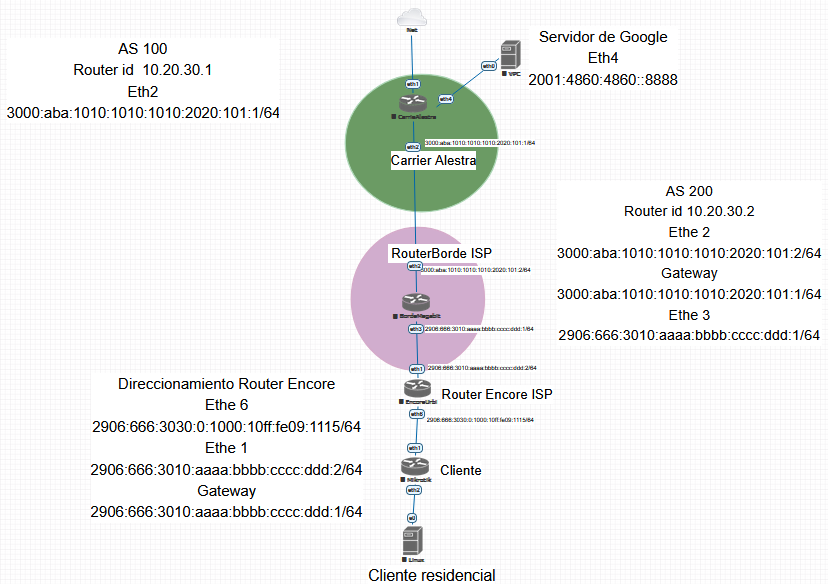

Laboratorio EVE-NG

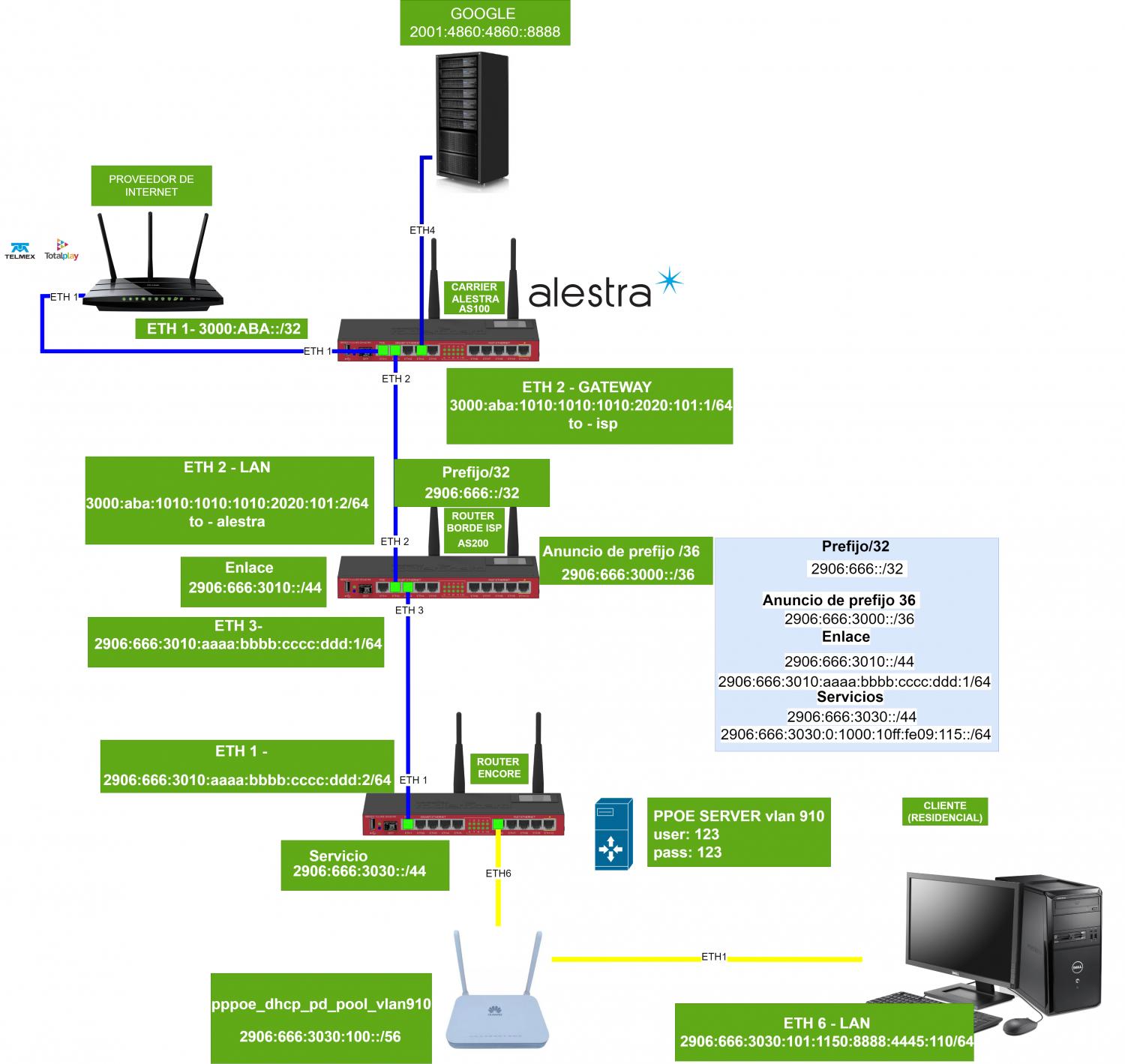

El siguiente ejemplo es entregando un /56 a la onu para que esta entregue al cliente final un /64.
Archivo adjunto 3938

1Script de Router Alestra

/interface bridge

add name=lo

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=100 router-id=10.20.30.1

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=2001:4860:4860::8888/128 advertise=no comment="DNS GOOGLE" \

    interface=lo

add address=3000:aba:1010:1010:1010:2020:101:1 advertise=no interface=ether2

/routing bgp peer

add address-families=ipv6 default-originate=always name=CPE_BM \

    remote-address=3000:aba:1010:1010:1010:2020:101:2 remote-as=200

/system identity

set name=CarrierAlestra

/tool romon

set enabled=yes

2 Script de Router Borde Megabit

/interface bridge

add name=lo

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=200 router-id=10.20.30.2

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=3000:aba:1010:1010:1010:2020:101:2 advertise=no interface=ether2

add address=2906:666:3010:aaaa:bbbb:cccc:ddd:1 advertise=no interface=ether3

/ipv6 route

add distance=1 dst-address=2906:666:3020::/44 gateway=\

    2906:666:3010:aaaa:bbbb:cccc:ddd:2

add distance=1 dst-address=2906:666:3030::/44 gateway=\

    2906:666:3010:aaaa:bbbb:cccc:ddd:2

/routing bgp network

add network=2906:666:3000::/36 synchronize=no

/routing bgp peer

add address-families=ipv6 name=WAN_IPv6 remote-address=\

    3000:aba:1010:1010:1010:2020:101:1 remote-as=100

/system identity

set name=BordeMegabit

/tool romon

set enabled=yes

3Script de Router EncoreUrbi

/interface vlan

add interface=ether6 name=vlan910 vlan-id=910

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 dhcp-server

add address-pool=POOL_CLIENTES disabled=yes interface=ether6 name=server1

/ipv6 pool

add name=POOL_CLIENTES prefix=2906:666:3030::/44 prefix-length=56

/ppp profile

set *0 dhcpv6-pd-pool=POOL_CLIENTES

/interface pppoe-server server

add disabled=no interface=ether6 service-name=910

/ip dhcp-client

add disabled=no interface=ether1

/ip dns

set servers=2001:4860:4860::8888,2001:4860:4860::8844

/ipv6 address

add address=2906:666:3010:aaaa:bbbb:cccc:ddd:2 advertise=no interface=ether1

add address=::1000:10ff:fe09:1115 from-pool=POOL_CLIENTES interface=ether6

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/ipv6 route

add distance=1 gateway=2906:666:3010:aaaa:bbbb:cccc:ddd:1

/ppp secret

add name=123 password=123 service=pppoe

/system identity

set name=EncoreUrbi

/tool romon

set enabled=yes

4Script de Router Cliente (simulacion de la onu)

/interface pppoe-client

add add-default-route=yes disabled=no interface=ether1 name=pppoe-out1 \

    password=123 use-peer-dns=yes user=123

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 dhcp-server

add address-pool=LAN interface=ether2 name=server1

/ip dhcp-client

add disabled=no interface=ether1

/ip dns

set servers=2001:4860:4860::8888,2001:4860:4860::8844

/ip firewall nat

add action=masquerade chain=srcnat disabled=yes out-interface=*5

/ipv6 address

add address=::5200:ff:fe02:1 eui-64=yes from-pool=LAN interface=ether2

/ipv6 dhcp-client

add interface=pppoe-out1 pool-name=LAN request=prefix

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/system identity

set name=Cliente

/tool romon

set enabled=yes

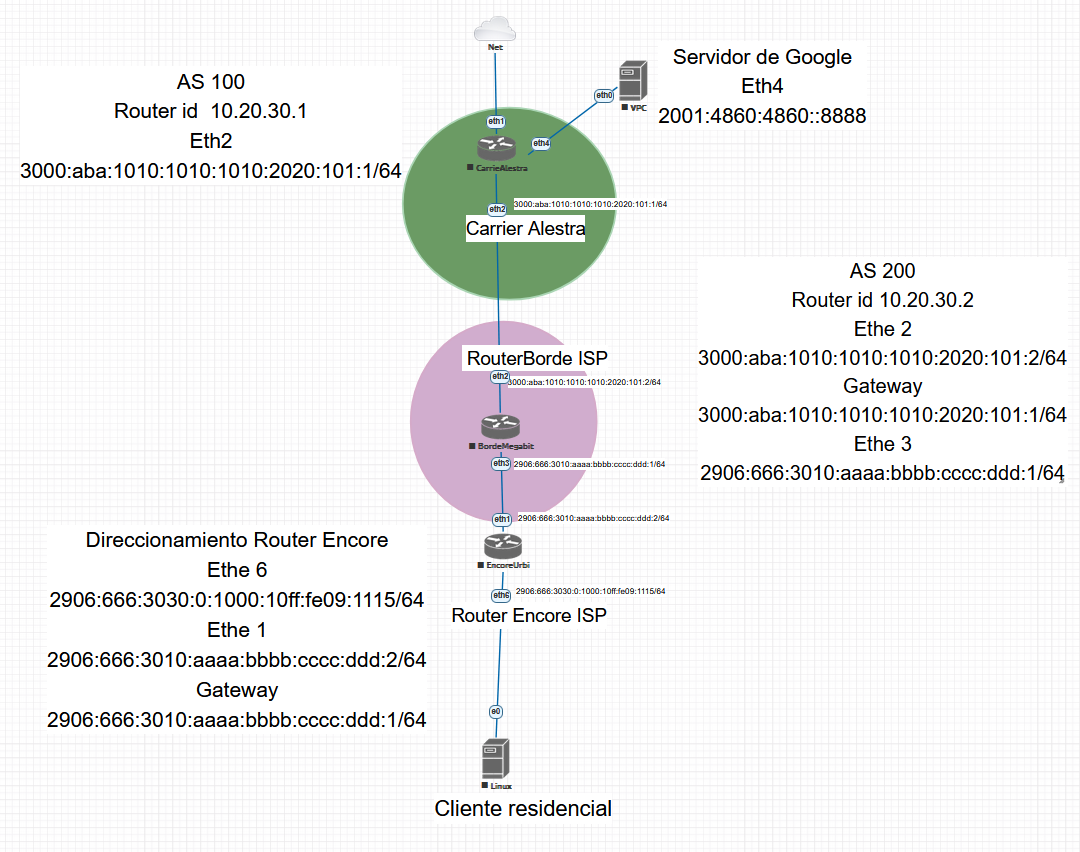

LABORATORIO EN EVE-NG
Archivo adjunto 3939
