Sesion BGP ipv6 para clientes Residenciales y Comerciales

BGP (Border Gateway Protocol) es un protocolo de enrutamiento utilizado en Internet y en redes privadas para intercambiar información de rutas entre diferentes sistemas autónomos (AS, por sus siglas en inglés). Es el protocolo que permite que los routers de diferentes organizaciones se comuniquen y encuentren la mejor ruta para enviar paquetes a través de la red.

En este caso, estás configurando eBGP en MikroTik, donde cada router tiene su propio ASN y están configurados como vecinos eBGP.

Descripción

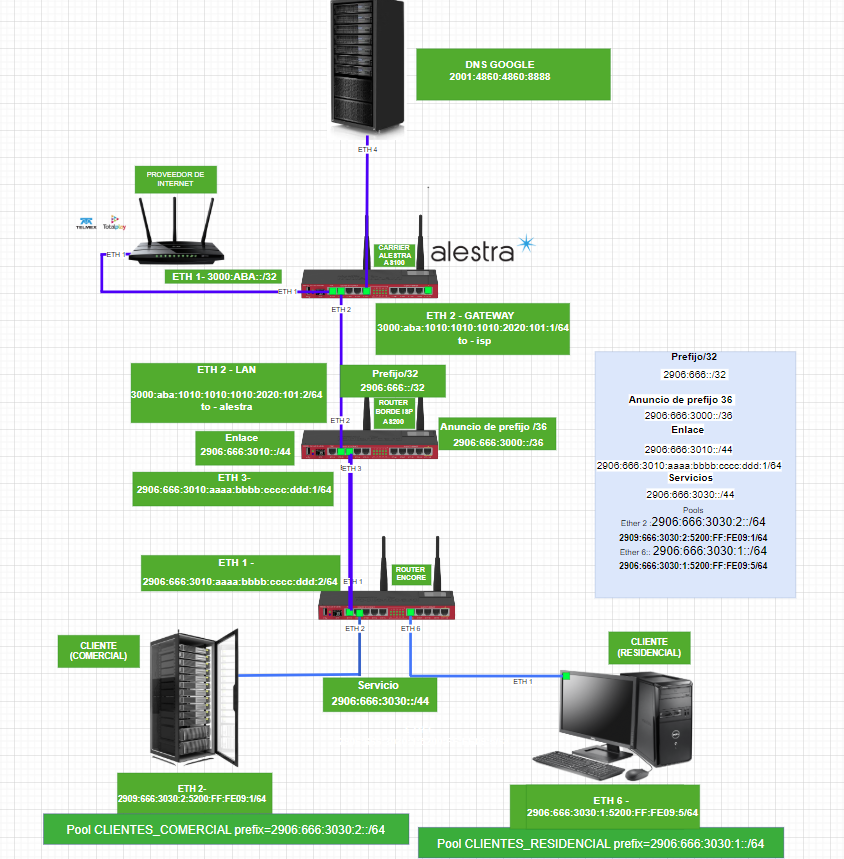

Vamos a crear un laboratorio en EVE-ng de acuerdo a la topología para simular una red con BGP, configurando los ASN en cada RB para que se pueda establecer el pering.

Archivo adjunto 3936

SCRIPT ROUTER CARRIER ALESTRA

/interface bridge

add name=lo

/interface ethernet

set [ find default-name=ether5 ] name=ether1

set [ find default-name=ether6 ] name=ether2

set [ find default-name=ether7 ] name=ether3

set [ find default-name=ether1 ] name=ether4

set [ find default-name=ether2 ] name=ether5

set [ find default-name=ether3 ] name=ether6

set [ find default-name=ether4 ] name=ether7

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=100 router-id=10.20.30.1

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=3000:aba:1010:1010:1010:2020:101:1 advertise=no interface=ether2

add address=2001:4860:4860::8888/128 advertise=no interface=lo

/routing bgp peer

add address-families=ipv6 default-originate=always name=CPE_BM \

    remote-address=3000:aba:1010:1010:1010:2020:101:2 remote-as=200

/system identity

set name=CarrierAlestra

/tool romon

set enabled=yes

SCRIPT ROUTER BORDE ISP

/interface bridge

add name=lo

/interface ethernet

set [ find default-name=ether2 ] name=ether1

set [ find default-name=ether3 ] name=ether2

set [ find default-name=ether4 ] name=ether3

set [ find default-name=ether5 ] name=ether4

set [ find default-name=ether6 ] name=ether5

set [ find default-name=ether7 ] name=ether6

set [ find default-name=ether8 ] name=ether7

set [ find default-name=ether9 ] name=ether8

set [ find default-name=ether10 ] name=ether9

set [ find default-name=ether1 ] name=ether10

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=200 router-id=10.20.30.2

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=3000:aba:1010:1010:1010:2020:101:2 advertise=no interface=ether1

add address=2906:666:3010:aaaa:bbbb:cccc:ddd:1 advertise=no interface=ether2

/ipv6 route

add distance=1 dst-address=2906:666:3020::/44 gateway=\

    2906:666:3010:aaaa:bbbb:cccc:ddd:2

add distance=1 dst-address=2906:666:3030::/44 gateway=\

    2906:666:3010:aaaa:bbbb:cccc:ddd:2

/routing bgp network

add network=2906:666:3000::/36 synchronize=no

/routing bgp peer

add address-families=ipv6 name=WAN_IPv6 remote-address=\

    3000:aba:1010:1010:1010:2020:101:1 remote-as=100

/system identity

set name=BordeMegabit

/tool romon

set enabled=yes

SCRIPT ROUTER ENCORE

/interface ethernet

set [ find default-name=ether7 ] name=ether1

set [ find default-name=ether8 ] name=ether2

set [ find default-name=ether1 ] name=ether3

set [ find default-name=ether2 ] name=ether4

set [ find default-name=ether3 ] name=ether5

set [ find default-name=ether4 ] name=ether6

set [ find default-name=ether5 ] name=ether7

set [ find default-name=ether6 ] name=ether8

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 dhcp-server

add address-pool=POOL_CLIENTES_E2 interface=ether2 name=server_E2

add address-pool=POOL_CLIENTES_E6 interface=ether6 name=server_E6

/ipv6 pool

add name=POOL_CLIENTES_E6 prefix=2906:666:3030:1::/64 prefix-length=64

add name=POOL_CLIENTES_E2 prefix=2906:666:3030:2::/64 prefix-length=64

/ip dhcp-client

add disabled=no interface=ether1

/ip dns

set servers=2001:4860:4860::8888,2001:4860:4860::8844

/ipv6 address

add address=2906:666:3010:aaaa:bbbb:cccc:ddd:2 advertise=no interface=ether1

add address=::5200:ff:fe09:5 eui-64=yes from-pool=POOL_CLIENTES_E6 interface=\

    ether6

add address=::5200:ff:fe09:1 eui-64=yes from-pool=POOL_CLIENTES_E2 interface=\

    ether2

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/ipv6 route

add distance=1 gateway=2906:666:3010:aaaa:bbbb:cccc:ddd:1

/system identity

set name=EncoreUrbi

/tool romon

set enabled=yes

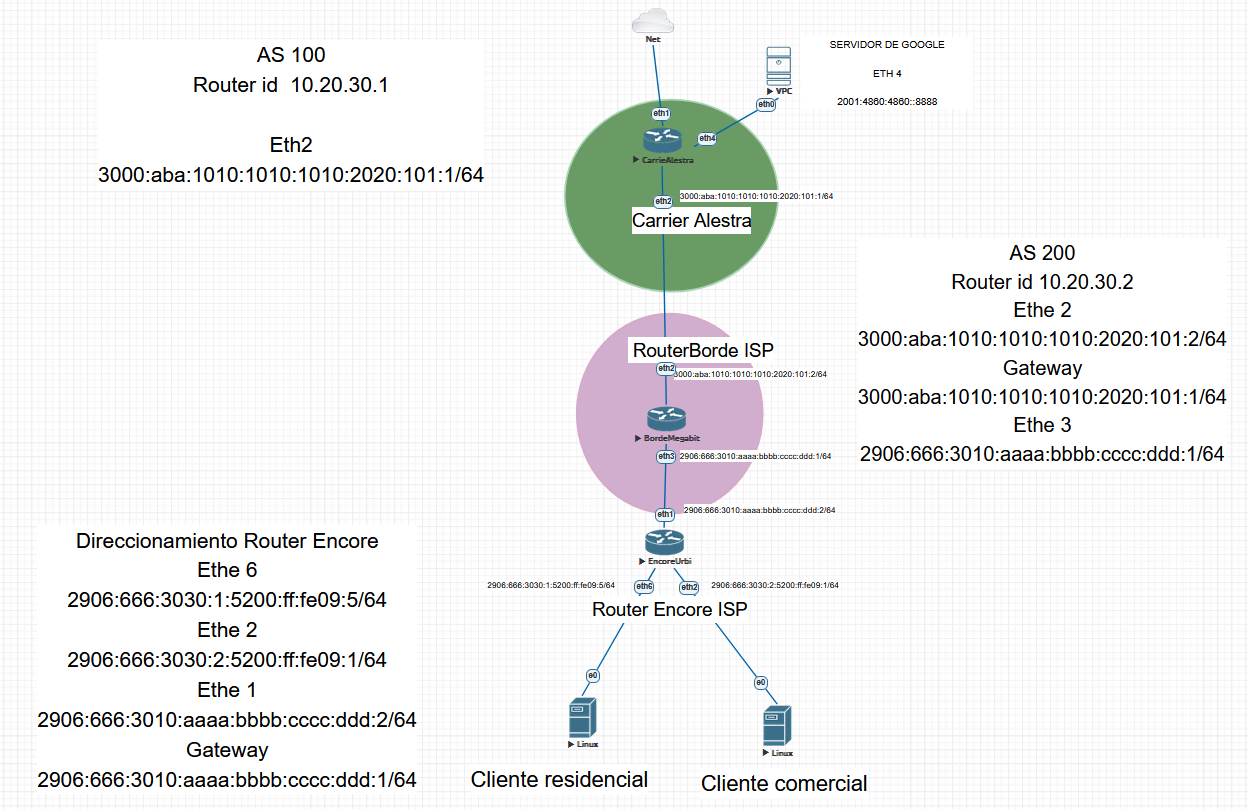

TOPOLOGIA EN EVE-NG

Archivo adjunto 3937
