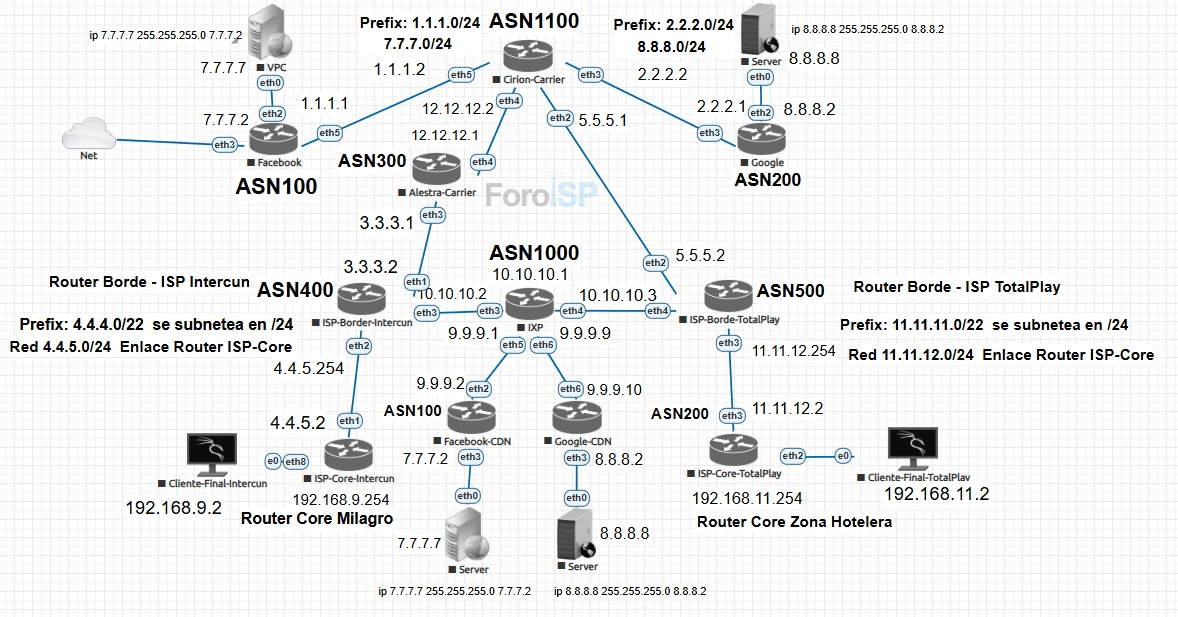

Se pretende llegar al siguiente diagrama
Archivo adjunto 3953

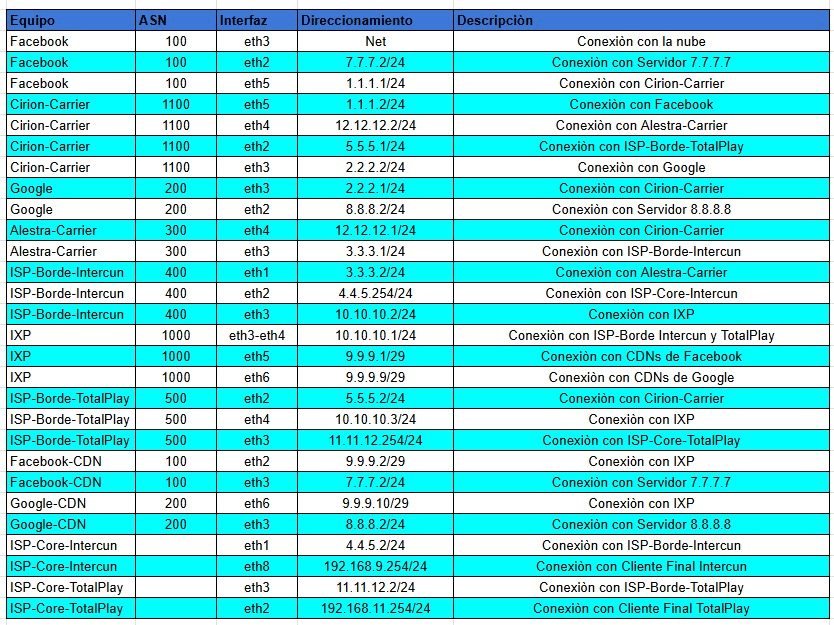

Tabla de Ayuda
Archivo adjunto 3954
1 Importar laboratorio de EVE-NG
Archivo adjunto 3955
2 Poner los Scripts en los Router
Facebook
#
/routing bgp instance set default as=100
#
/ip address
add address=1.1.1.1/24 comment=to-Cirion interface=ether5 network=1.1.1.0
add address=7.7.7.2/24 comment=to-Server-Facebook interface=ether2 network=7.7.7.0
#
/routing bgp network add network=7.7.7.0/24 synchronize=no
#
/routing bgp peer add name=peer-to-cirion remote-address=1.1.1.2 remote-as=1100
#
/system identity set name=Facebook
/tool romon set enabled=yes
Cirion Carrier
#
/routing bgp instance set default as=1100 redistribute-connected=yes
#
/ip address
add address=2.2.2.2/24 comment=to-Google interface=ether3 network=2.2.2.0
add address=5.5.5.1/24 comment=to-ISP-TotalPlay interface=ether2 network=5.5.5.0
add address=1.1.1.2/24 comment=to-Facebook interface=ether5 network=1.1.1.0
add address=12.12.12.2/24 comment=to-Alestra interface=ether4 network=12.12.12.0
#
/routing bgp peer
add name=peer-to-google remote-address=2.2.2.1 remote-as=200
add name=peer-to-isp-borde-totalplay remote-address=5.5.5.2 remote-as=500
add name=peer-to-facebook remote-address=1.1.1.1 remote-as=100
add name=peer-to-alestra remote-address=12.12.12.1 remote-as=300
#
/system identity set name=Cirion
/tool romon set enabled=yes
Google
#
/routing bgp instance set default as=200
#
/ip address
add address=2.2.2.1/24 comment=to-TotalPlay interface=ether3 network=2.2.2.0
add address=8.8.8.2/24 comment=to-Server-Google interface=ether2 network=8.8.8.0
#
/routing bgp network add network=8.8.8.0/24 synchronize=no
#
/routing bgp peer
add name=peer-to-alestra remote-address=2.2.2.2 remote-as=1100
#
/system identity set name=Google
/tool romon set enabled=yes
Alestra Carrier
#
/routing bgp instance set default as=300 redistribute-connected=yes
#
/ip address
add address=3.3.3.1/24 comment=to-ISP-Borde-Intercun interface=ether3 network=3.3.3.0
add address=12.12.12.1/24 comment=to-Cirion-Carrier interface=ether4 network=12.12.12.0
#
/routing bgp peer
add name=peer-to-isp-borde-intercun remote-address=3.3.3.2 remote-as=400
add name=peer-to-cirion-carrier remote-address=12.12.12.2 remote-as=1100
#
/system identity set name=Alestra
/tool romon set enabled=yes
ISP-Borde-Intercun
#
/routing bgp instance set default as=400
#
/ip address
add address=3.3.3.2/24 comment=to-Alestra-Carrier interface=ether1 network=3.3.3.0
add address=4.4.5.254/24 comment=to-ISP-Core-Interncun interface=ether2 network=4.4.5.0
add address=10.10.10.2/24 comment=to-IXP interface=ether3 network=10.10.10.0
#
/routing bgp network
add network=4.4.4.0/24 synchronize=no
add network=4.4.5.0/24 synchronize=no
#
/routing bgp peer
add name=peer-to-alestra-carrier remote-address=3.3.3.1 remote-as=300
add name=peer-to-ixp remote-address=10.10.10.1 remote-as=1000
#
/system identity set name=ISP-Borde-Intercun
/tool romon set enabled=yes
IXP
#
/interface bridge add name=bridge-isps
#
/routing bgp instance set default as=1000 redistribute-connected=yes
#
/interface bridge port
add bridge=bridge-isps interface=ether3
add bridge=bridge-isps interface=ether4
#
/ip address
add address=10.10.10.1/24 comment=to-ISPs interface=bridge-isps network=10.10.10.0
add address=9.9.9.1/29 comment=to-Facebook-CDN interface=ether5 network=9.9.9.0
add address=9.9.9.9/29 comment=to-Google-CDN interface=ether6 network=9.9.9.8
#
/routing bgp network
add network=10.10.10.0/24 synchronize=no
#
/routing bgp peer
add name=peer-to-intercun remote-address=10.10.10.2 remote-as=400
add name=peer-to-facebook-cdn remote-address=9.9.9.2 remote-as=100
add name=peer-to-google-cdn remote-address=9.9.9.10 remote-as=200
add name=peer-to-totalplay remote-address=10.10.10.3 remote-as=500
#
/system identity set name=IXP
/tool romon set enabled=yes
Facebook CDN
#
/routing bgp instance set default as=100
#
/ip address
add address=9.9.9.2/29 comment=to-IXP interface=ether2 network=9.9.9.0
add address=7.7.7.2/24 comment=to-Server interface=ether3 network=7.7.7.0
#
/routing bgp network add network=7.7.7.0/24 synchronize=no
#
/routing bgp peer add name=peer-to-ixp remote-address=9.9.9.1 remote-as=1000
#
/system identity set name=Facebook-CDN
/tool romon set enabled=yes
Google CDN
#
/routing bgp instance set default as=200
#
/ip address
add address=8.8.8.2/24 comment=to-Server interface=ether3 network=8.8.8.0
add address=9.9.9.10/29 comment=to-IXP interface=ether6 network=9.9.9.8
#
/routing bgp network add network=8.8.8.0/24 synchronize=no
#
/routing bgp peer add name=peer-to-ixp remote-address=9.9.9.9 remote-as=1000
#
/system identity set name=Google-CDN
/tool romon set enabled=yes
ISP-Borde-TotalPlay
#
/routing bgp instance set default as=500
#
/ip address
add address=5.5.5.2/24 comment=to-Cirion interface=ether2 network=5.5.5.0
add address=11.11.12.254/24 comment=to-ISP-Core-TotalPlay interface=ether3 network=11.11.12.0
add address=10.10.10.3/24 comment=to-IXP interface=ether4 network=10.10.10.0
#
/routing bgp network
add network=11.11.11.0/24 synchronize=no
add network=11.11.12.0/24 synchronize=no
#
/routing bgp peer
add in-filter=ruta-larga name=peer-to-cirion remote-address=5.5.5.1 remote-as=1100
add name=peer-to-ixp remote-address=10.10.10.1 remote-as=1000
#
/routing filter add action=accept chain=ruta-larga set-bgp-prepend-path=2
#
/system identity set name=ISP-Borde-TotalPlay
/tool romon set enabled=yes
ISP-Core-Intercun
#
/ip address
add address=4.4.5.2/24 comment=to-ISP-Borde-Intercun interface=ether1 network=4.4.5.0
add address=192.168.9.254/24 comment=to-Cliente-Final-Intercun interface=ether8 network=192.168.9.0
#
/ip firewall nat add action=masquerade chain=srcnat out-interface=ether1
#
/ip route add distance=1 gateway=4.4.5.254
#
/system identity set name=ISP-Core-Intercun
/tool romon set enabled=yes
ISP-Core-TotalPlay
#
/ip address
add address=11.11.12.2/24 comment=to-ISP-Borde-TotalPlay interface=ether3 network=11.11.12.0
add address=192.168.11.254/24 comment=to-Cliente-Final-TotalPlay interface=ether2 network=192.168.11.0
#
/ip firewall nat add action=masquerade chain=srcnat
#
/ip route add distance=1 gateway=11.11.12.254
#
/system identity set name=ISP-Core-TotalPlay
/tool romon set enabled=yes
3 Pruebas

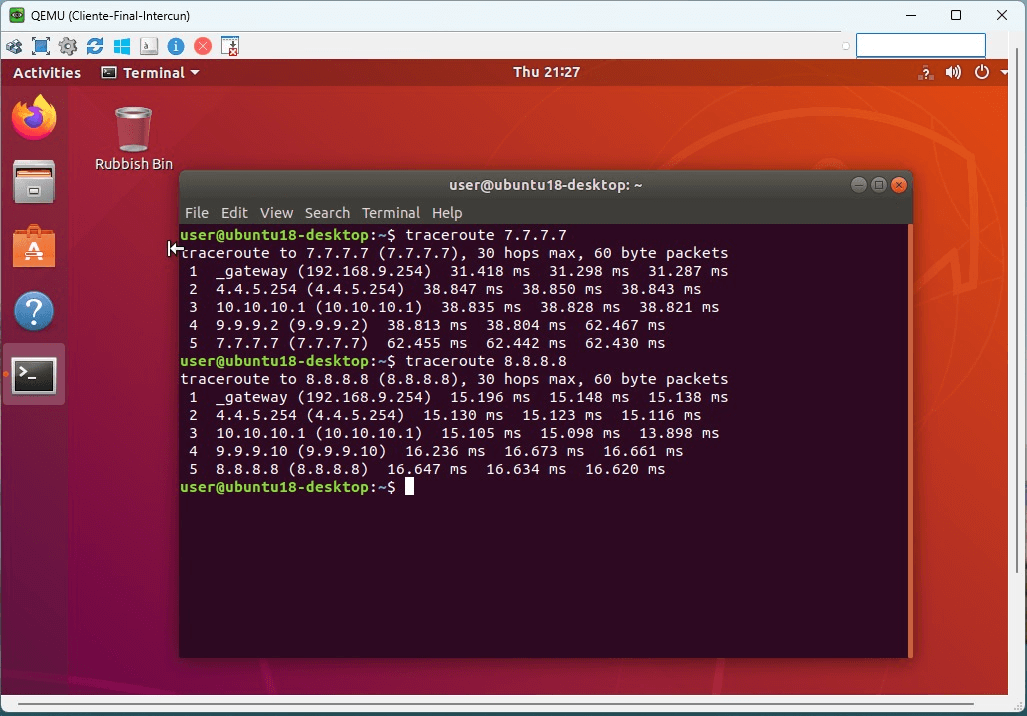

Traceroute a Facebook y Google en Cliente Final Intercun, se debe ir a Facebook-CDN y Google-CDN pasando por el IXP
Archivo adjunto 3956

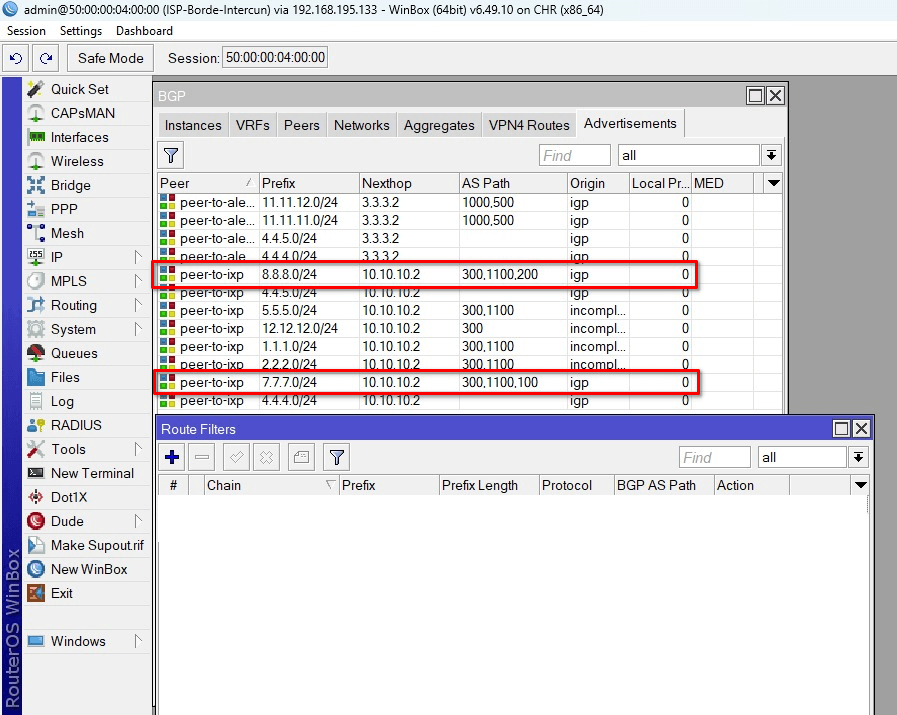

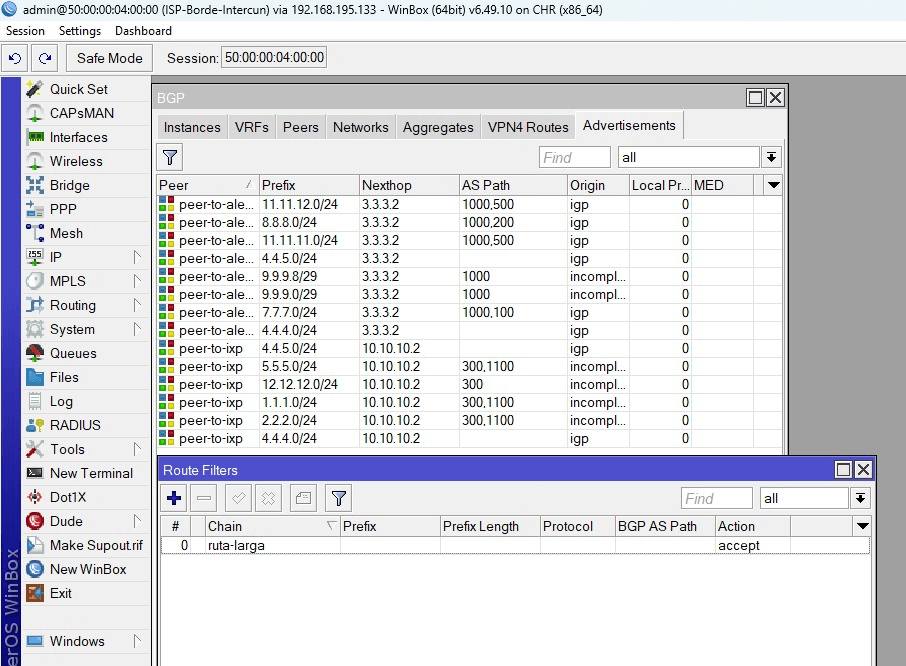

As Path de ISP-Borde-Intercun
Archivo adjunto 3957

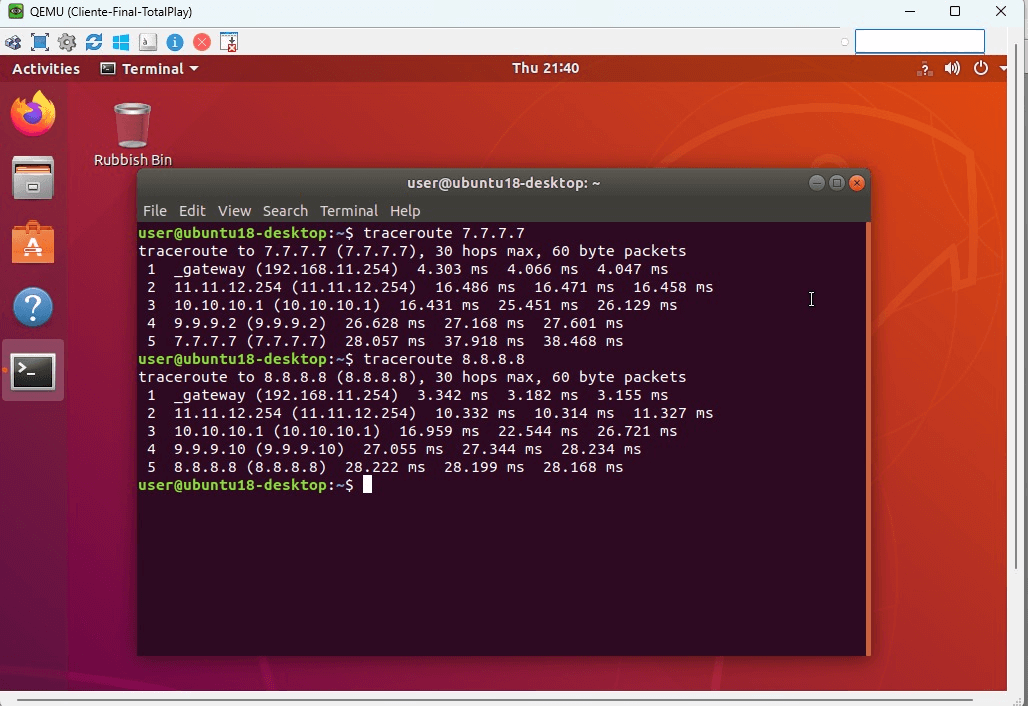

Traceroute a Facebook y Google en Cliente Final TotalPlay, se debe ir a Facebook-CDN y Google-CDN pasando por el IXP
Archivo adjunto 3958

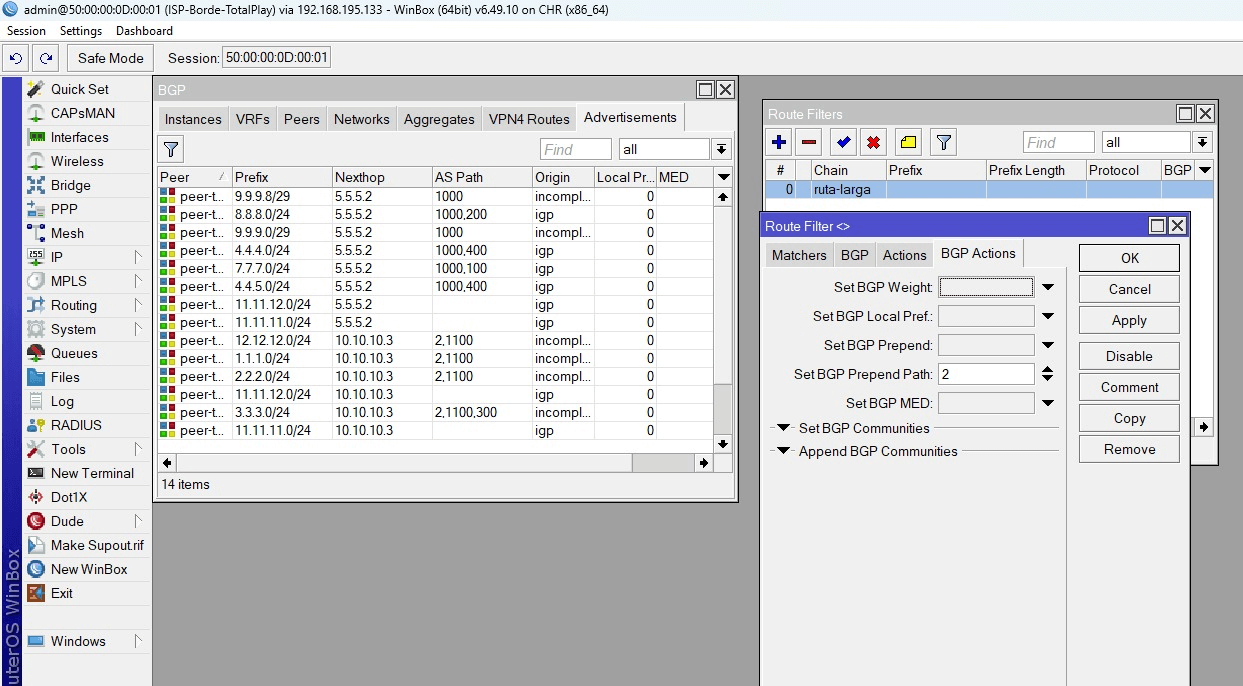

As Path de ISP-Borde-TotalPlay
Archivo adjunto 3959

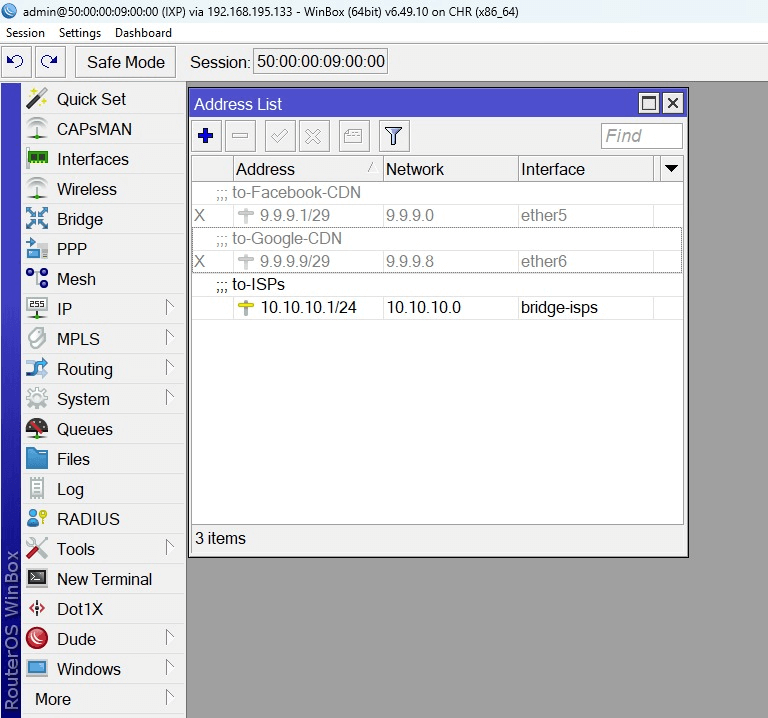

Se apagan las interfaces de Facebook-CDN y Google-CDN en el IXP
Archivo adjunto 3960

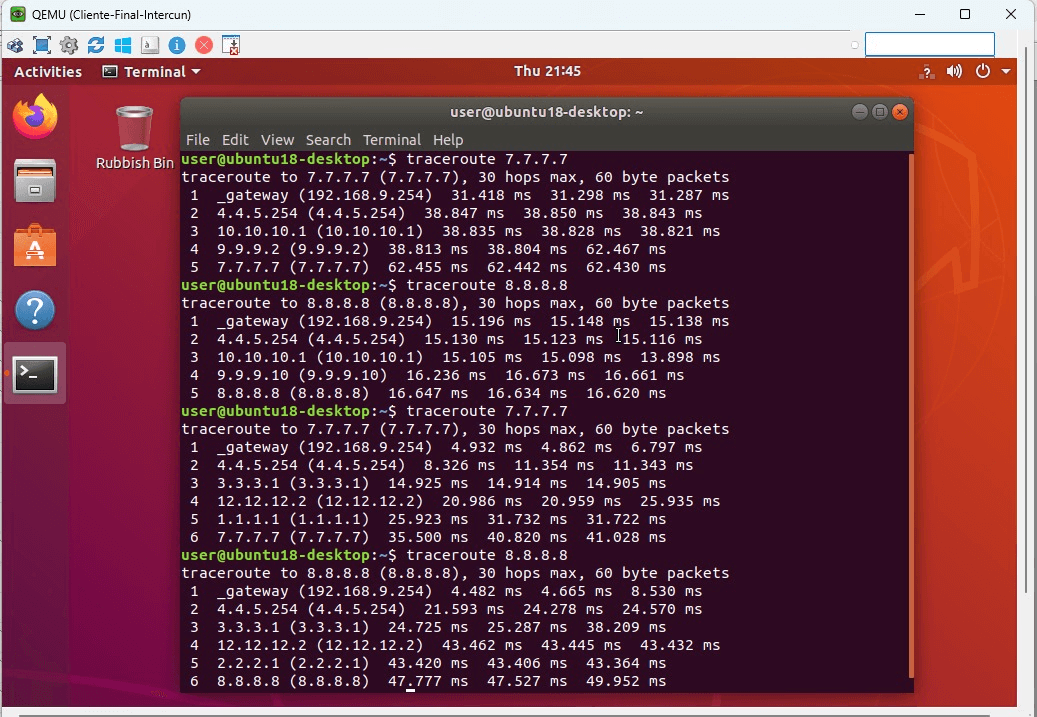

Traceroute a Facebook y Google en Cliente Final Intercun, se debe ir a Facebook y Google sin pasar por el IXP porque las interfaces ya están apagadas.
Archivo adjunto 3961
As Path de ISP-Borde-Intercun con las interfaces apagadas de los CDNs en el IXP.
Archivo adjunto 3970

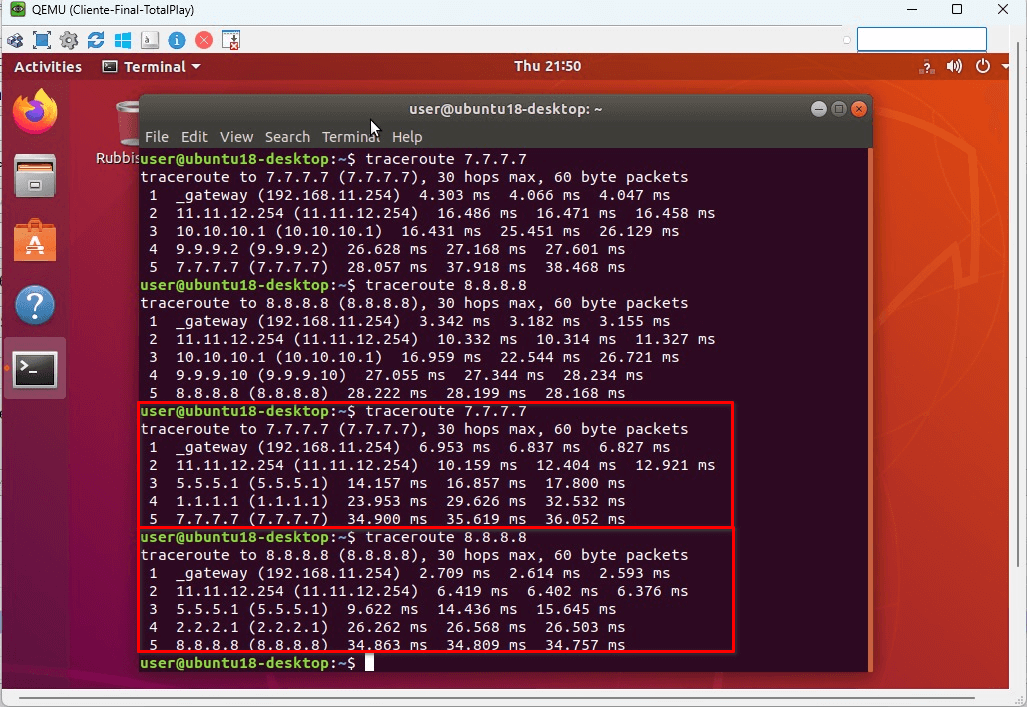

Traceroute a Facebook y Google en Cliente Final TotalPlay, se debe ir a Facebook y Google sin pasar por el IXP porque las interfaces ya están apagadas.
Archivo adjunto 3971

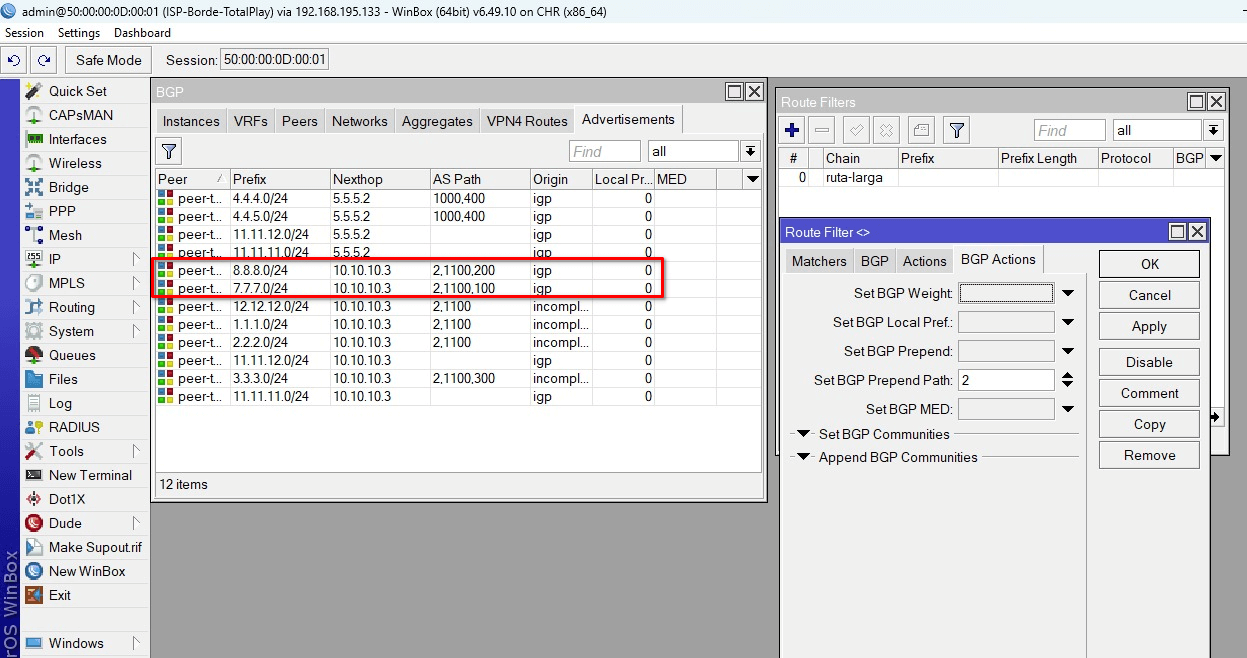

As Path de ISP-Borde-TotalPlay con las interfaces apagadas de los CDNs en el IXP.
Archivo adjunto 3972
