Laboratorio IPv6 y Subneteo desde un /32 sin BGP
Archivo adjunto 4052
RB_ISP
/interface ethernet
set [ find default-name=ether1 ] name=to-RB-MILAGRO
set [ find default-name=ether2 ] name=to-RB-ZONA-HOTELERA
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip dhcp-client
add disabled=no interface=ether4
/ip dns
set servers=2001:4860:4860::8888,2001:4860:4860::8844
/ipv6 address
add address=2400:beef:6ff0:eeee:1::1 advertise=no comment=to-RB-MILAGRO \
interface=to-RB-MILAGRO
add address=2400:beef:6ff0:ffff:2::1 advertise=no comment=to-RB-ZONA-HOTELERA \
interface=to-RB-ZONA-HOTELERA
add address=2001:4860:4860::1 advertise=no comment=to-Google interface=ether3
/ipv6 route
add comment="Prefijo /44 RB-MILAGRO" distance=1 dst-address=\
2400:beef:6010::/44 gateway=2400:beef:6ff0:eeee:1::2
add comment="Prefijo /44 RB-ZONA-HOTELERA" distance=1 dst-address=\
2400:beef:6030::/44 gateway=2400:beef:6ff0:ffff:2::2
/system identity
set name=RB-ISP
/tool romon
set enabled=yes

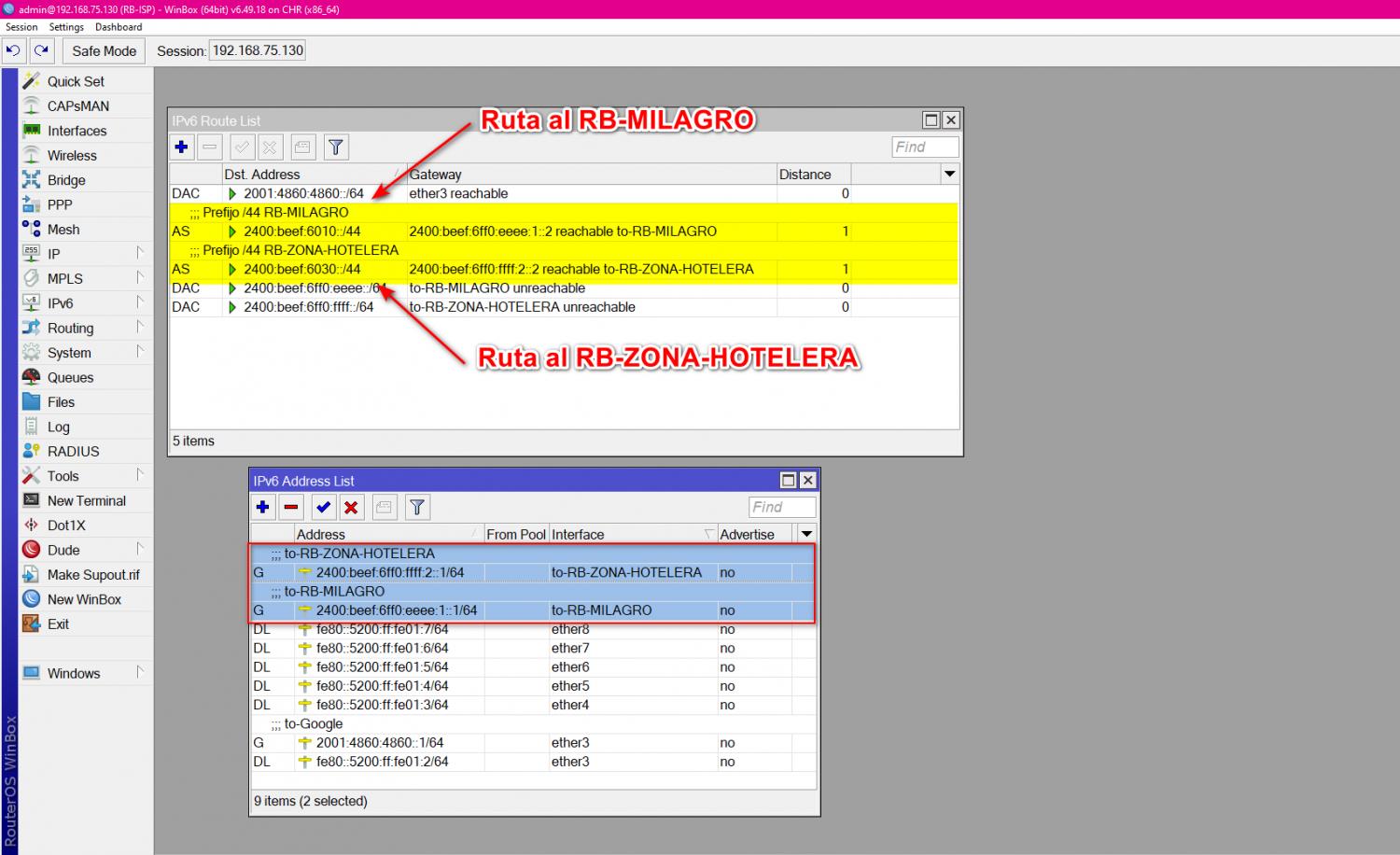

Nota
Es importante agregar las rutas con el /44 hacia el RB-MILAGRO y RB-ZONA-HOTELERA, ya que sin ello no podremos tener ping al Server_Google desde la pc del cliente.
Archivo adjunto 4051
RB_MILAGRO
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ipv6 pool
add name=DHCPv6-PD-Pool-PrefixAcquisitionMode prefix=2400:beef:6010::/44 \
prefix-length=56
add name=RemoteIPv6PrefixPool-TunelPPPoE prefix=2400:beef:6020::/44 \
prefix-length=64
/ppp profile
add dhcpv6-pd-pool=DHCPv6-PD-Pool-PrefixAcquisitionMode name=\
Server_PPPoE_RB_MILAGRO remote-ipv6-prefix-pool=\
RemoteIPv6PrefixPool-TunelPPPoE
/interface pppoe-server server
add default-profile=Server_PPPoE_RB_MILAGRO disabled=no interface=ether2 \
service-name=Server-PPPoE-RB-MILAGRO
/ip dhcp-client
add disabled=no interface=ether1
/ip dns
set servers=2001:4860:4860::8888,2001:4860:4860::8844
/ipv6 address
add address=2400:beef:6ff0:eeee:1::2 advertise=no comment=to-RB-ISP \
interface=ether1
/ipv6 route
add distance=1 gateway=2400:beef:6ff0:eeee:1::1
/ppp secret
add name=cliente1 password=123 service=pppoe
/system identity
set name=RB-MILAGRO
/tool romon
set enabled=yes
RB_ZONA_HOTELERA
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ipv6 pool
add name=RemoteIPv6PrefixPool-TunelPPPoE prefix=2400:beef:6040::/44 \
prefix-length=64
add name=DHCPv6-PD-Pool-PrefixAcquisitionMode prefix=2400:beef:6030::/44 \
prefix-length=56
/ppp profile
add dhcpv6-pd-pool=DHCPv6-PD-Pool-PrefixAcquisitionMode name=\
Server_PPPoE_RB_ZONA_HOTELERA remote-ipv6-prefix-pool=\
RemoteIPv6PrefixPool-TunelPPPoE
/interface pppoe-server server
add default-profile=Server_PPPoE_RB_ZONA_HOTELERA disabled=no interface=\
ether2 service-name=Server-PPPoE-RB-ZONA-HOTELERA
/ip dhcp-client
add disabled=no interface=ether1
/ip dns
set servers=2001:4860:4860::8888,2001:4860:4860::8844
/ipv6 address
add address=2400:beef:6ff0:ffff:2::2 advertise=no comment=to-RB-ISP \
interface=ether1
/ipv6 nd
set [ find default=yes ] other-configuration=yes
/ipv6 route
add distance=1 gateway=2400:beef:6ff0:ffff:2::1
/ppp secret
add name=cliente4 password=123 service=pppoe
/system identity
set name=RB-ZONA-HOTELERA
/tool romon
set enabled=yes
ONU_MILAGRO
/interface bridge
add name=LAN_CLIENTES
/interface pppoe-client
add add-default-route=yes disabled=no interface=ether1 name=PPPoE-Onu-Milagro \
password=123 user=cliente1
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ipv6 dhcp-server
add allow-dual-stack-queue=no interface=LAN_CLIENTES name=LAN_CLIENTES
/interface bridge port
add bridge=LAN_CLIENTES interface=ether2
add bridge=LAN_CLIENTES interface=ether3
add bridge=LAN_CLIENTES interface=ether4
/ip dhcp-client
add disabled=no interface=ether1
/ipv6 address
add address=::5200:ff:fe04:1 eui-64=yes from-pool=Pool-IPv6-RB-MILAGRO \
interface=LAN_CLIENTES
/ipv6 dhcp-client
add add-default-route=yes interface=PPPoE-Onu-Milagro pool-name=\
Pool-IPv6-RB-MILAGRO rapid-commit=no request=prefix use-peer-dns=no
/ipv6 nd
set [ find default=yes ] other-configuration=yes
/system identity
set name=Onu-Milagro
/tool romon
set enabled=yes
ONU_ZONA_HOTELERA
/interface bridge
add name=LAN-CLIENTES
/interface pppoe-client
add add-default-route=yes disabled=no interface=ether1 name=\
PPPoE-Onu-Zona-Hotelera password=123 user=cliente4
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ipv6 dhcp-server
add allow-dual-stack-queue=no interface=LAN-CLIENTES name=LAN_CLIENTES
/interface bridge port
add bridge=LAN-CLIENTES interface=ether2
add bridge=LAN-CLIENTES interface=ether3
add bridge=LAN-CLIENTES interface=ether4
/ip dhcp-client
add disabled=no interface=ether1
/ipv6 address
add address=::5200:ff:fe05:1 eui-64=yes from-pool=Pool-IPv6-RB-ZONA-HOTELERA \
interface=LAN-CLIENTES
/ipv6 dhcp-client
add add-default-route=yes interface=PPPoE-Onu-Zona-Hotelera pool-name=\
Pool-IPv6-RB-ZONA-HOTELERA rapid-commit=no request=prefix use-peer-dns=no
/ipv6 nd
set [ find default=yes ] other-configuration=yes
/system identity
set name=Onu-Zona-Hotelera
/tool romon
set enabled=yes

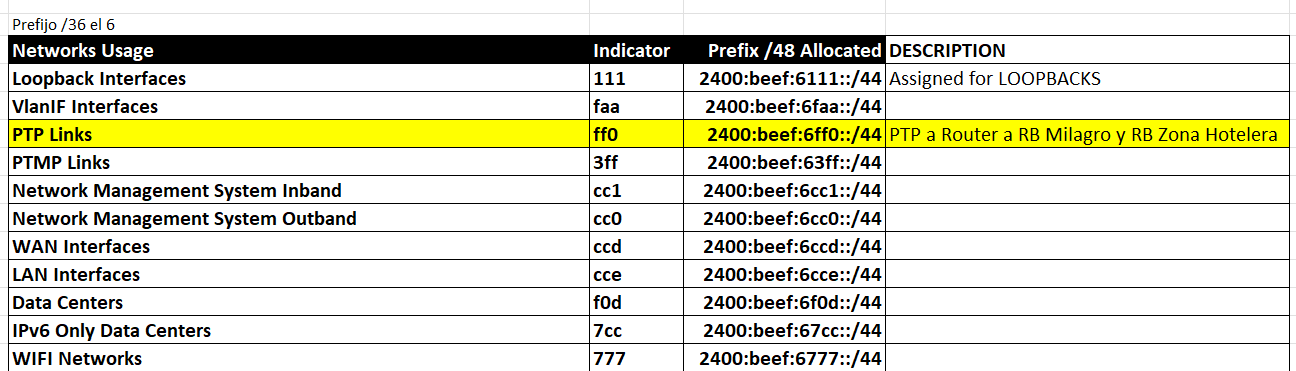

PLAN DE DIRECCIONAMIENTO

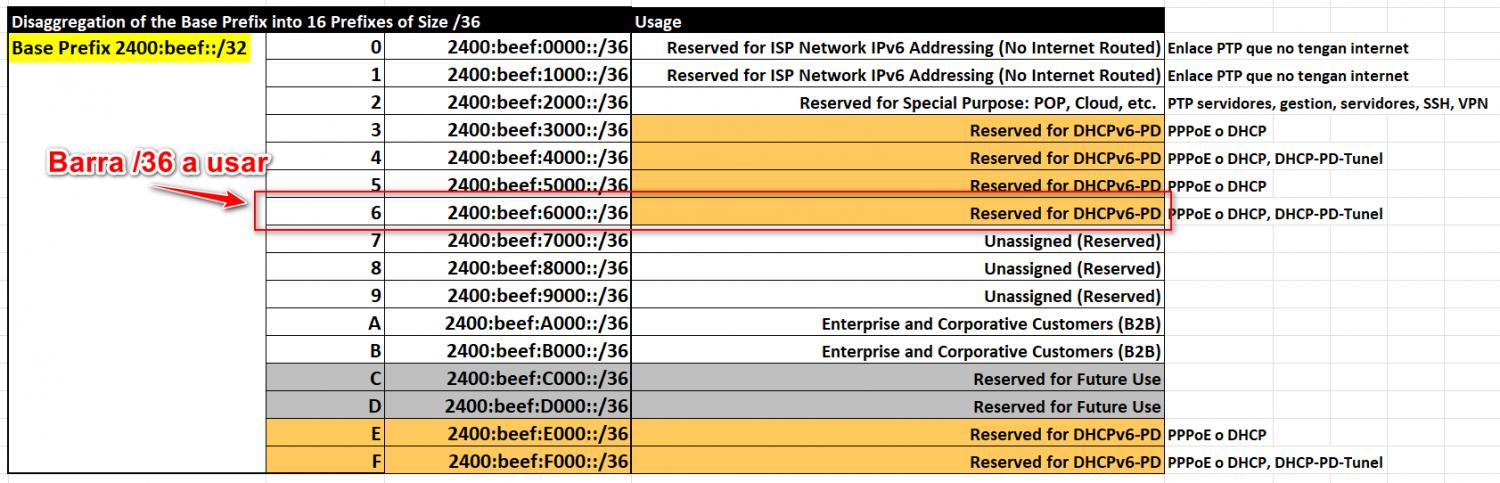

Por tema del laboratorio usamos el /36 ---> 2400:beef:6000::/36 pero lo recomendable es utilizar las recomendaciones de la tabla.
Archivo adjunto 4053
Archivo adjunto 4054

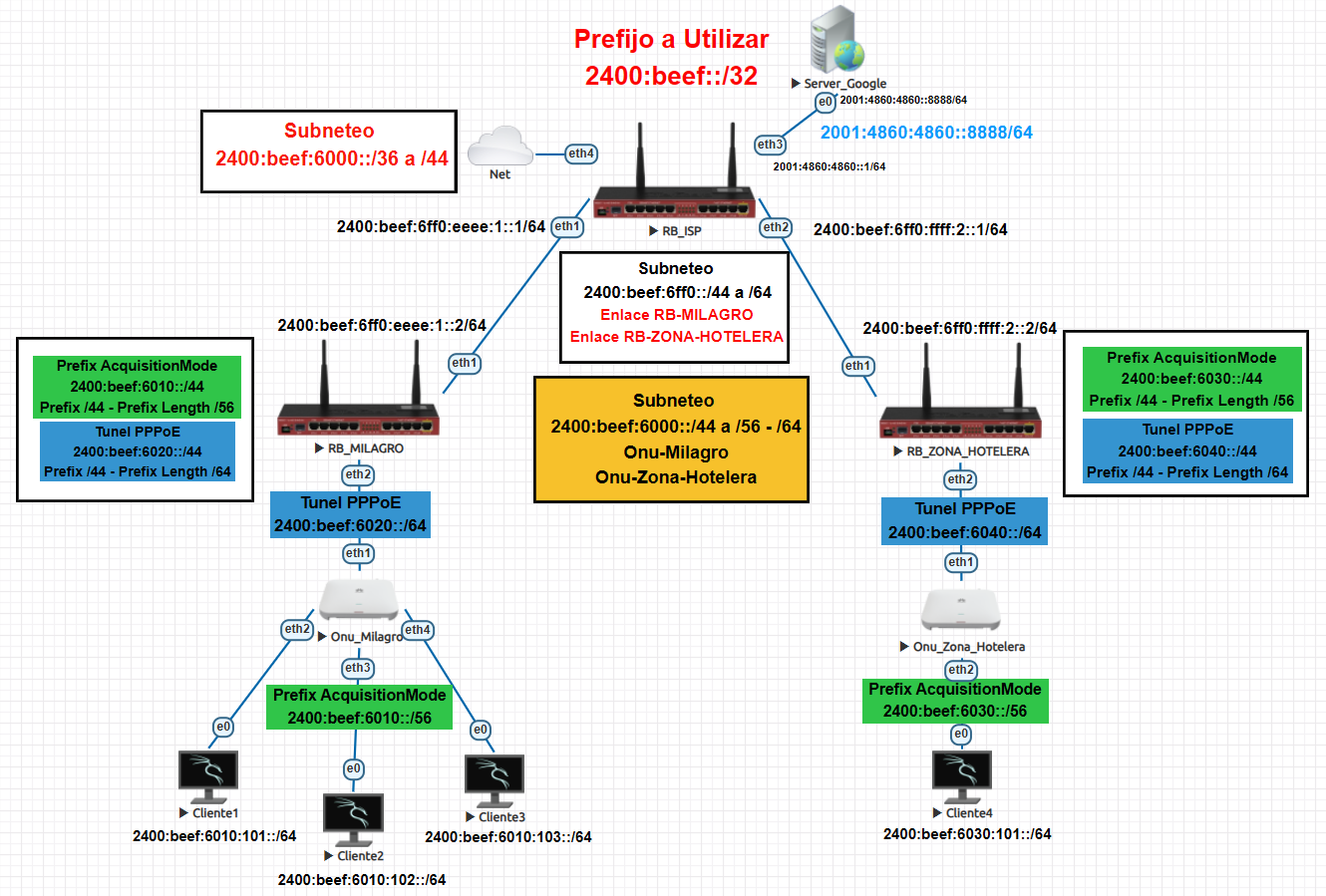

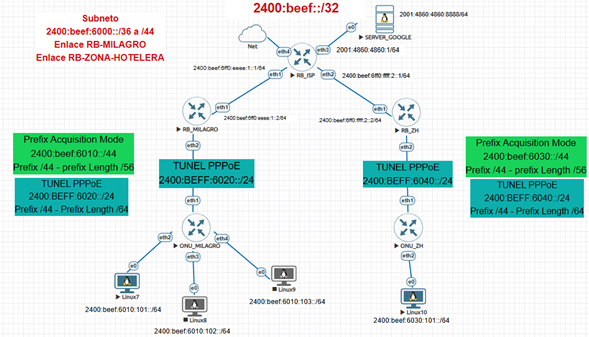

DIAGRAMA
Archivo adjunto 4055
