Escenario BGP Red ISP con Juniper

Nota

En este post se representara un escenario donde simulamos que redes de internet se estan comunicando con una red ISP a través de un Carrier. Los prefijos y ASN utilizados son solo para emular el laboratorio generado en eve-ng

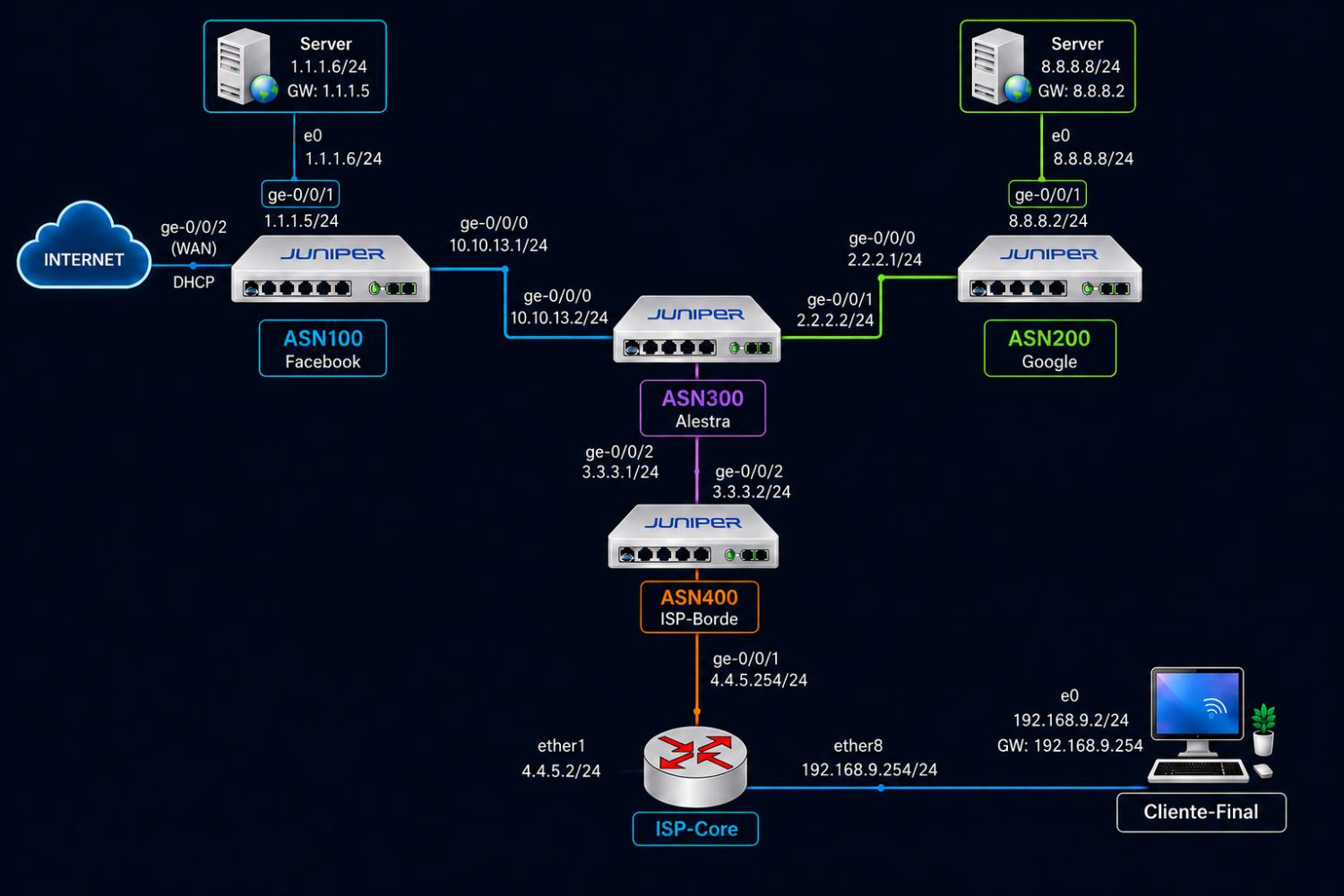

Se pretende llegar al siguiente Diagrama

Archivo adjunto 4348

Nota

Si el juniper esta buscando conectarse por DHCP eliminar la interfaz de DCHCP con:

delete chassis auto-image-upgrade

commit

Nota

Se debe configurar la contraseña y el nombre del juniper para que al aplicar commit se permita correctamente



configure



set system root-authentication plain-text-password



set system host-name NOMBREDELRB



commit

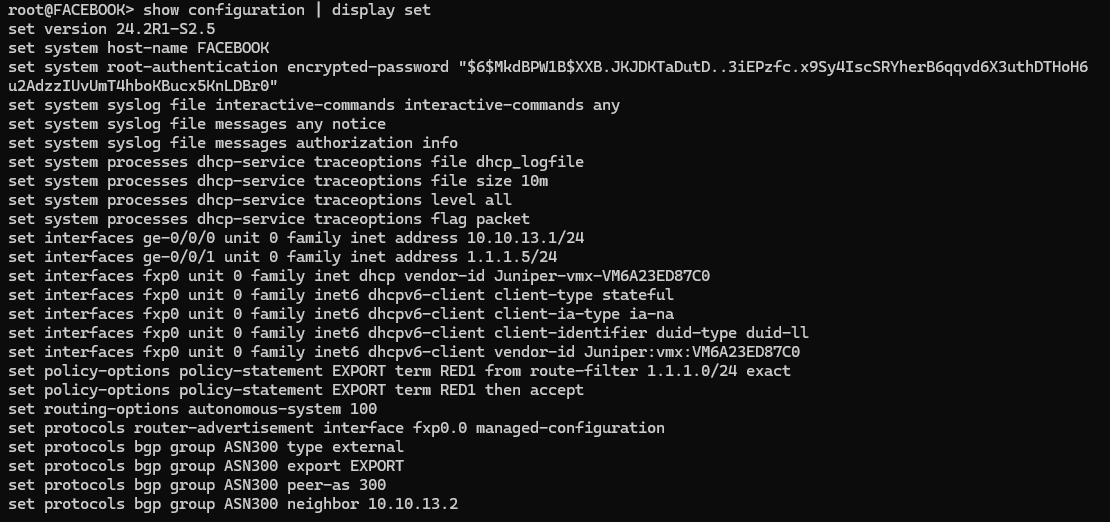

Configuracion Router FACEBOOK



configure



set system host-name FACEBOOK



set interfaces ge-0/0/0 unit 0 family inet address 10.10.13.1/24

set interfaces ge-0/0/1 unit 0 family inet address 1.1.1.5/24



set routing-options autonomous-system 100



set policy-options policy-statement EXPORT term RED1 from route-filter 1.1.1.0/24 exact

set policy-options policy-statement EXPORT term RED1 then accept



set protocols bgp group ASN300 type external

set protocols bgp group ASN300 peer-as 300

set protocols bgp group ASN300 neighbor 10.10.13.2

set protocols bgp group ASN300 export EXPORT

Nota

Para ver la configuraciÃ³n de los comandos agregados utilizamos: show configuration | display set

Archivo adjunto 4342

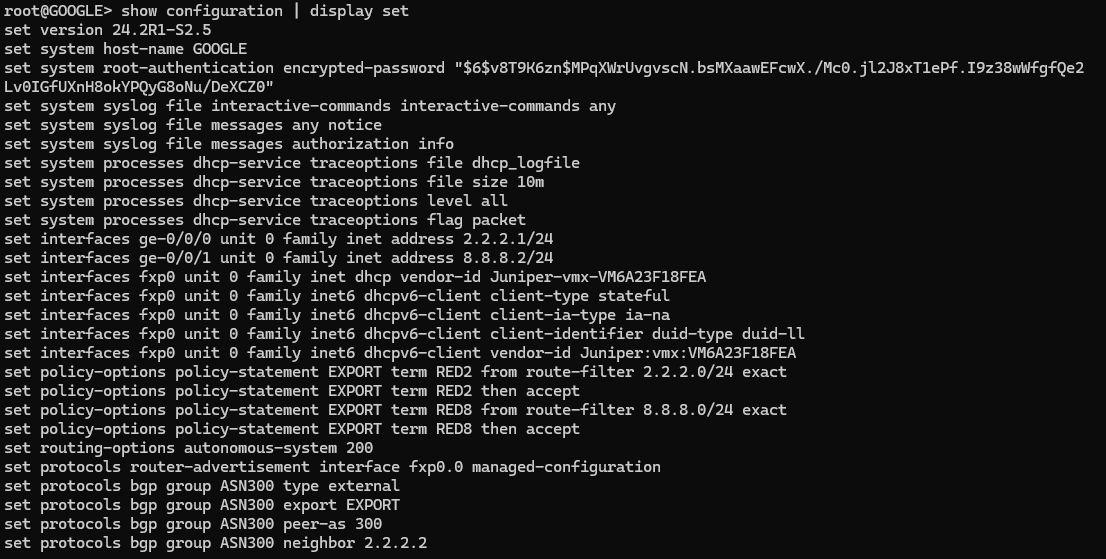

Configuracion Router GOOGLE





configure



set system host-name GOOGLE



set interfaces ge-0/0/0 unit 0 family inet address 2.2.2.1/24

set interfaces ge-0/0/1 unit 0 family inet address 8.8.8.2/24



set routing-options autonomous-system 200



set policy-options policy-statement EXPORT term RED2 from route-filter 2.2.2.0/24 exact

set policy-options policy-statement EXPORT term RED2 then accept



set policy-options policy-statement EXPORT term RED8 from route-filter 8.8.8.0/24 exact

set policy-options policy-statement EXPORT term RED8 then accept



set protocols bgp group ASN300 type external

set protocols bgp group ASN300 peer-as 300

set protocols bgp group ASN300 neighbor 2.2.2.2

set protocols bgp group ASN300 export EXPORT



commit

Archivo adjunto 4343

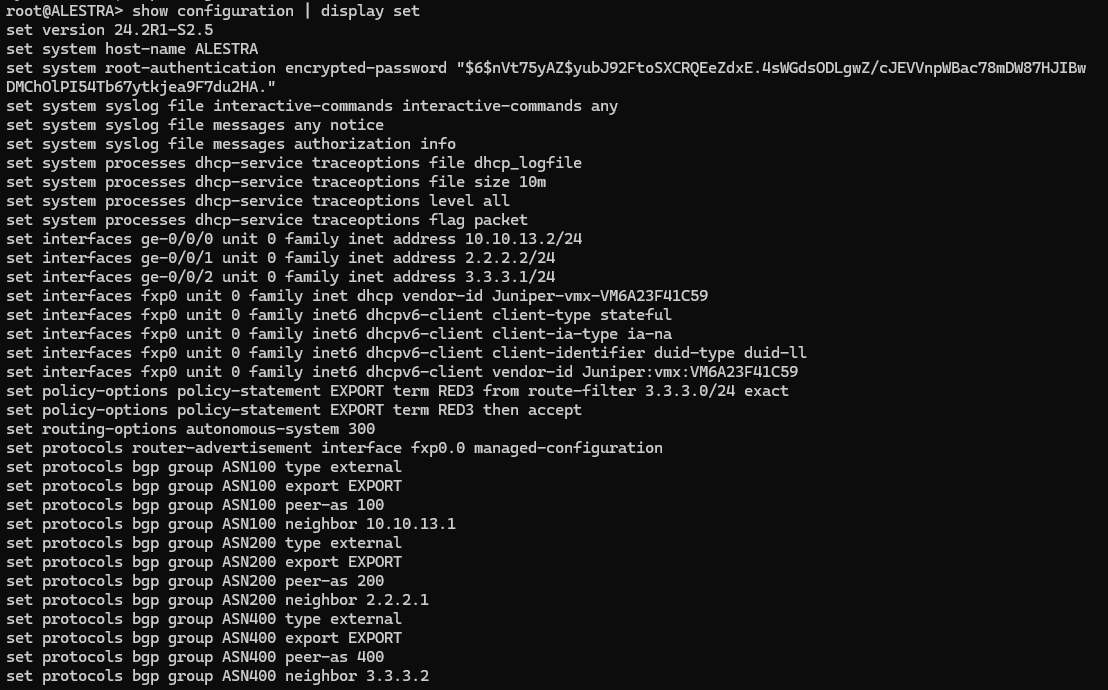

Configuracion ALESTRA



configure



set system host-name ALESTRA



set interfaces ge-0/0/0 unit 0 family inet address 10.10.13.2/24

set interfaces ge-0/0/1 unit 0 family inet address 2.2.2.2/24

set interfaces ge-0/0/2 unit 0 family inet address 3.3.3.1/24



set routing-options autonomous-system 300



set policy-options policy-statement EXPORT term RED3 from route-filter 3.3.3.0/24 exact

set policy-options policy-statement EXPORT term RED3 then accept



set protocols bgp group ASN100 type external

set protocols bgp group ASN100 peer-as 100

set protocols bgp group ASN100 neighbor 10.10.13.1



set protocols bgp group ASN200 type external

set protocols bgp group ASN200 peer-as 200

set protocols bgp group ASN200 neighbor 2.2.2.1



set protocols bgp group ASN400 type external

set protocols bgp group ASN400 peer-as 400

set protocols bgp group ASN400 neighbor 3.3.3.2



set protocols bgp group ASN100 export EXPORT

set protocols bgp group ASN200 export EXPORT

set protocols bgp group ASN400 export EXPORT



commit

Archivo adjunto 4344 Archivo adjunto 4344

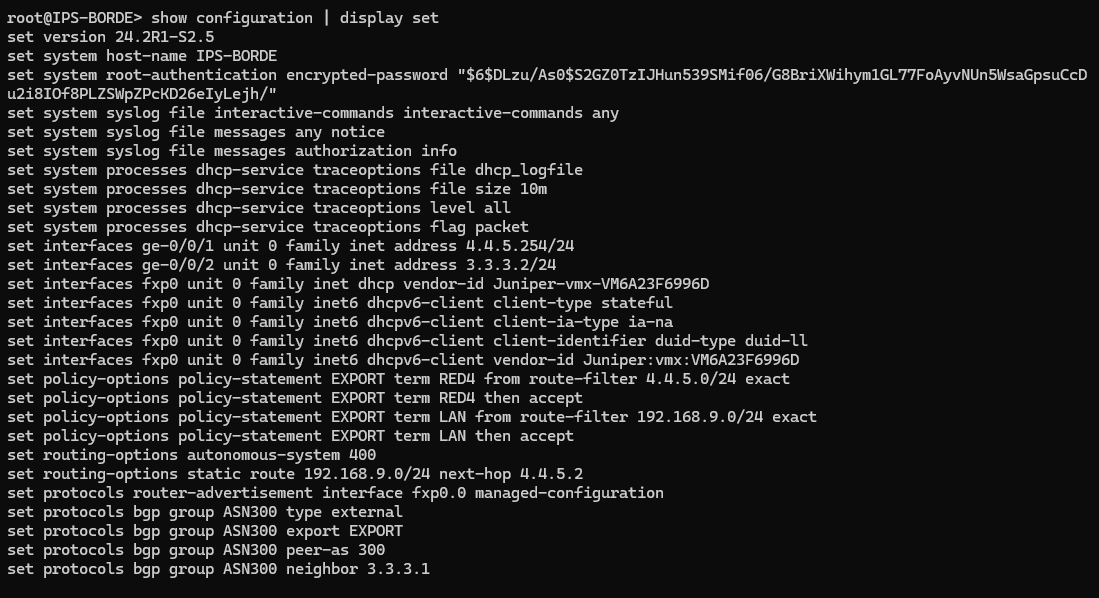

Configuracion ISP-BORDE





configure



set system host-name ISP-BORDE



set interfaces ge-0/0/0 unit 0 family inet address 3.3.3.2/24

set interfaces ge-0/0/1 unit 0 family inet address 4.4.5.254/24



set routing-options autonomous-system 400



set routing-options static route 192.168.9.0/24 next-hop 4.4.5.2



set policy-options policy-statement EXPORT term RED4 from route-filter 4.4.5.0/22 exact

set policy-options policy-statement EXPORT term RED4 then accept



set policy-options policy-statement EXPORT term LAN from route-filter 192.168.9.0/24 exact

set policy-options policy-statement EXPORT term LAN then accept



set protocols bgp group ASN300 type external

set protocols bgp group ASN300 peer-as 300

set protocols bgp group ASN300 neighbor 3.3.3.1

set protocols bgp group ASN300 export EXPORT



commit

Archivo adjunto 4345

Configuracion Mikrotik ISP-CORE





/ip address

add address=4.4.5.2/24 interface=ether1



add address=192.168.9.254/24 interface=ether8



/ip route

add dst-address=0.0.0.0/0 gateway=4.4.5.254

Nota

Importante: Desabilitar el DHCP-CLIENT para que no haga conflicto con el default route del BGP y se pueda dar el ping correctamente

Servidor (PC) FACEBOOK



IP: 1.1.1.6

Mascara: 255.255.255.0

Gateway: 1.1.1.5

Archivo adjunto 4346

Servidor (PC) GOOGLE



IP: 8.8.8.8

Mascara: 255.255.255.0

Gateway: 8.8.8.2

Archivo adjunto 4347

PC Cliente Final



IP: 192.168.9.2

Mascara: 255.255.255.0

Gateway: 192.168.9.254

DNS: 8.8.8.8
