Prueba 4

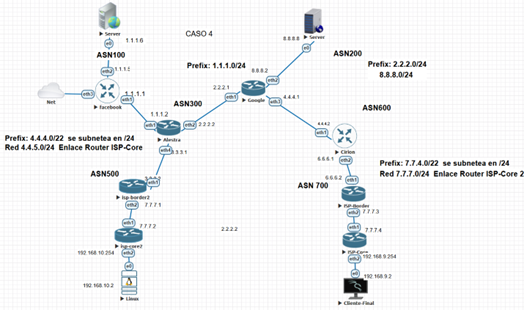

Nombre: caso4.png Visitas: 7253 Tamaño: 141.1 KB

Google

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=200

/interface bridge port

add bridge=bridge1 interface=ether1

add bridge=bridge1 interface=ether3

/ip address

add address=2.2.2.1/24 comment=to-Alestra interface=ether1 network=2.2.2.0

add address=8.8.8.2/24 comment=to-Server-Google interface=ether2 network=\

    8.8.8.0

/ip dhcp-client

# DHCP client can not run on slave interface!

add disabled=no interface=ether1

/routing bgp network

add network=2.2.2.0/24 synchronize=no

add network=8.8.8.0/24 synchronize=no

/routing bgp peer

add name=peer-to-alestra remote-address=2.2.2.2 remote-as=300

add name=peer1 remote-address=2.2.2.10 remote-as=600

/system identity

set name=Google

/tool romon

set enabled=yes


Cirion

/interface ethernet

set [ find default-name=ether4 ] name=ether1

set [ find default-name=ether1 ] name=ether2

set [ find default-name=ether2 ] name=ether3

set [ find default-name=ether3 ] name=ether4

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=600 redistribute-connected=yes

/ip address

add address=2.2.2.10/24 interface=ether1 network=2.2.2.0

add address=6.6.6.1/24 interface=ether2 network=6.6.6.0

/ip dhcp-client

add disabled=no interface=ether1

/routing bgp network

add network=6.6.6.0/24 synchronize=no

/routing bgp peer

add name=peer1 remote-address=2.2.2.1 remote-as=200

add name=peer2 remote-address=6.6.6.2 remote-as=700

/system identity

set name=Cirion

/tool romon

set enabled=yes


ISP-Borde3

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=700

/ip address

add address=6.6.6.2/24 interface=ether1 network=6.6.6.0

add address=7.7.7.1/24 interface=ether2 network=7.7.7.0

/ip dhcp-client

add disabled=no interface=ether1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether1

/routing bgp network

add network=7.7.4.0/24 synchronize=no

/routing bgp peer

add name=peer1 remote-address=6.6.6.1 remote-as=600

/system identity

set name=ISP-Borde3

/tool romon

set enabled=yes

ISP-Core3

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ip address

add address=7.7.7.2/24 interface=ether1 network=7.7.7.0

add address=192.168.10.254/24 interface=ether2 network=192.168.10.0

/ip dhcp-client

add disabled=no interface=ether1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether1

/ip route

add distance=1 gateway=7.7.7.1

/system identity

set name=ISP-Core3

/tool romon

set enabled=yes
