Laboratorio IPV4 sin BGP y subneteo de un /22 a /24

[Wendy]

Laboratorio IPv4 sin BGP y subneteo de un /22 a /24




Configuración RB_ISP

/interface ethernet

set [ find default-name=ether1 ] name=to-RB-MILAGRO

set [ find default-name=ether2 ] name=to-RB-ZONA-HOTELERA

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ip address

add address=8.8.8.1/24 comment=to-Google interface=ether3 network=8.8.8.0

add address=187.188.56.1/24 comment=to-RB-MILAGRO interface=to-RB-MILAGRO \

    network=187.188.56.0

add address=187.188.57.1/24 comment=to-RB-ZONA-HOTELERA interface=\

    to-RB-ZONA-HOTELERA network=187.188.57.0

/ip dhcp-client

add disabled=no interface=ether4

/system identity

set name=RB_ISP

/tool romon

set enabled=yes

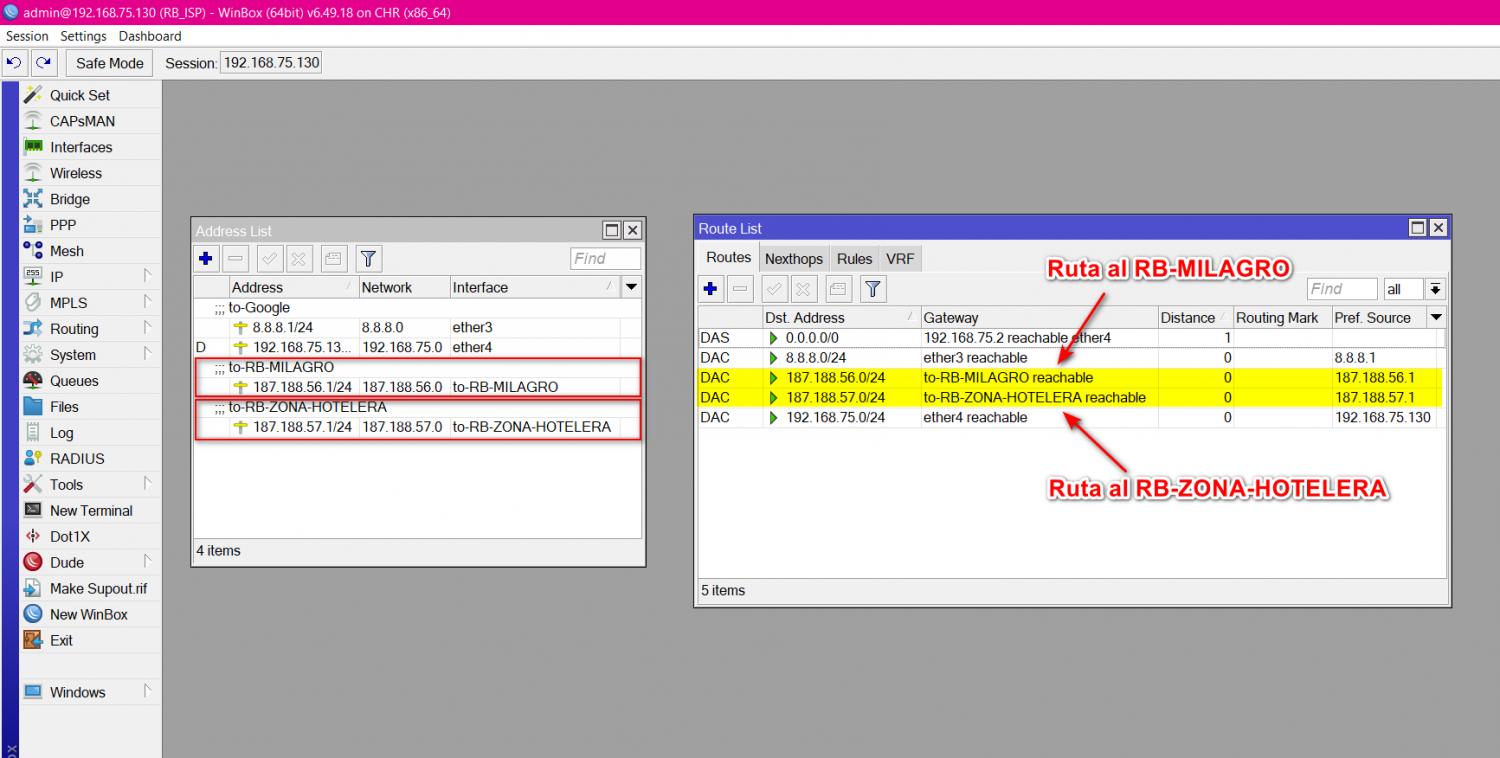

Nota

Al momento de realizar el Punto a Punto entre RB_ISP, RB_MILAGRO y RB_ZONA_HOTELERA las rutas se crean automaticamente por lo tanto NO es necesario crearla automaticamente. Es importante que en el RB_ISP, existan las rutas hacia el RB_MILAGRO y RB_ZONA_HOTELERA ya que sin esto, NO podremos dar ping al SERVER_GOOGLE desde las Onus de Clientes.

Configuración RB_MILAGRO

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ip address

add address=187.188.56.2/24 comment=to-RB-ISP interface=ether1 network=\

    187.188.56.0

add address=192.168.10.1/24 comment=to-Onu-Milagro interface=ether2 network=\

    192.168.10.0

/ip dhcp-client

add disabled=no interface=ether1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether1

/ip route

add distance=1 gateway=187.188.56.1

/system identity

set name=RB-MILAGRO

/tool romon

set enabled=yes

Configuración RB_ZONA_HOTELERA

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ip address

add address=187.188.57.2/24 comment=to-RB-ISP interface=ether1 network=\

    187.188.57.0

add address=192.168.20.1/24 comment=to-Onu-Zona-Hotelera interface=ether2 \

    network=192.168.20.0

/ip dhcp-client

add disabled=no interface=ether1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether1

/ip route

add distance=1 gateway=187.188.57.1

/system identity

set name=RB-ZONA-HOTELERA

/tool romon

set enabled=yes

Configuración ONU_MILAGRO

/interface bridge

add name=LAN-CLIENTES

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ip pool

add name=dhcp_pool0 ranges=192.168.100.2-192.168.100.254

/ip dhcp-server

add address-pool=dhcp_pool0 disabled=no interface=LAN-CLIENTES name=dhcp1

/interface bridge port

add bridge=LAN-CLIENTES interface=ether2

add bridge=LAN-CLIENTES interface=ether3

add bridge=LAN-CLIENTES interface=ether4

/ip address

add address=192.168.10.2/24 comment=to-RB_MILAGRO interface=ether1 network=\

    192.168.10.0

add address=192.168.100.1/24 comment=LAN-Clientes-MIlagro interface=\

    LAN-CLIENTES network=192.168.100.0

/ip dhcp-client

add disabled=no interface=ether1

/ip dhcp-server network

add address=192.168.100.0/24 dns-server=8.8.8.8,8.8.4.4 gateway=192.168.100.1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether1

/ip route

add distance=1 gateway=192.168.10.1

/system identity

set name=Onu-Milagro

/tool romon

set enabled=yes

Configuración ONU_ZONA_HOTELERA

/interface bridge

add name=LAN-CLIENTES

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ip pool

add name=dhcp_pool0 ranges=192.168.200.2-192.168.200.254

/ip dhcp-server

add address-pool=dhcp_pool0 disabled=no interface=LAN-CLIENTES name=dhcp1

/interface bridge port

add bridge=LAN-CLIENTES interface=ether2

add bridge=LAN-CLIENTES interface=ether3

add bridge=LAN-CLIENTES interface=ether4

/ip address

add address=192.168.20.2/24 comment=to-RB-ZONA-HOTELERA interface=ether1 \

    network=192.168.20.0

add address=192.168.200.1/24 comment=to-Onu-Zona-Hotelera interface=\

    LAN-CLIENTES network=192.168.200.0

/ip dhcp-client

add disabled=no interface=ether1

/ip dhcp-server network

add address=192.168.200.0/24 dns-server=8.8.8.8,8.8.4.4 gateway=192.168.200.1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether1

/ip route

add distance=1 gateway=192.168.20.1

/system identity

set name=Onu-Zona-Hotelera

/tool romon

set enabled=yes

Laboratorio Eve-NG
_Exports_unetlab_export-20250504-063411.zip

[NEMUELOXTE]

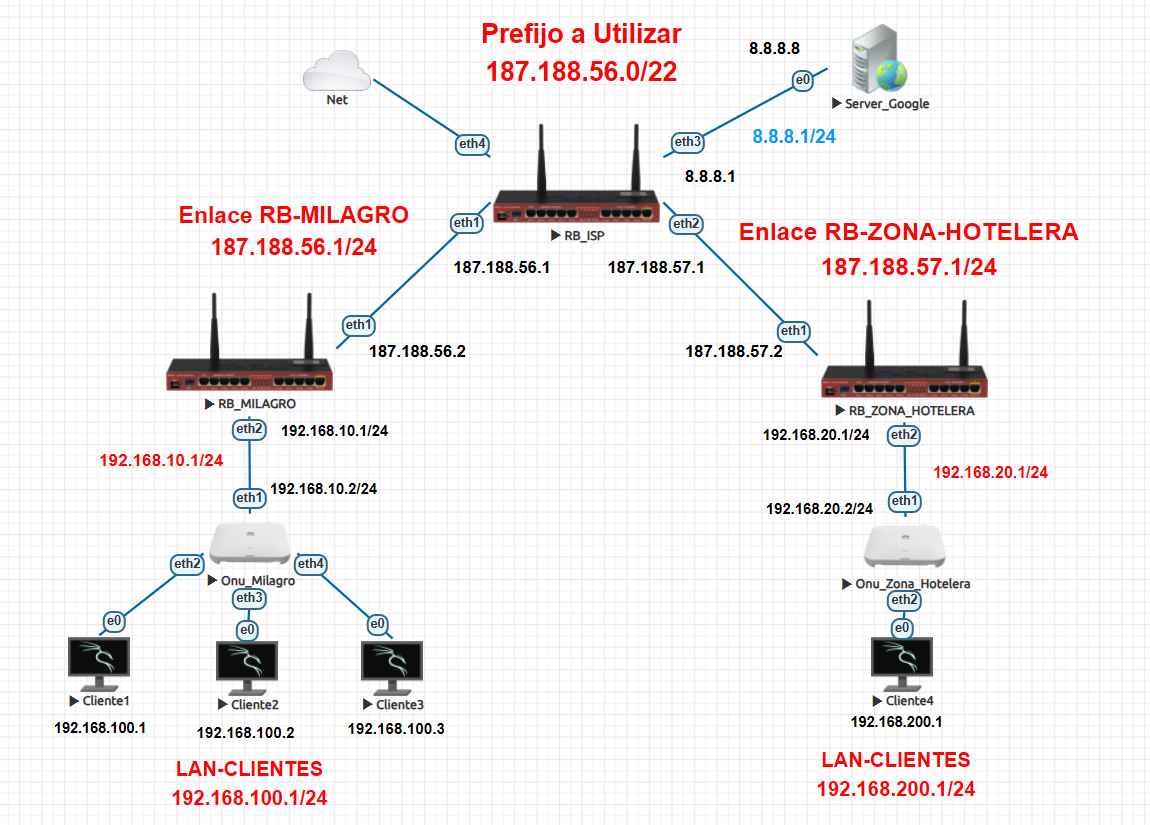

IPV4 SIN BGP

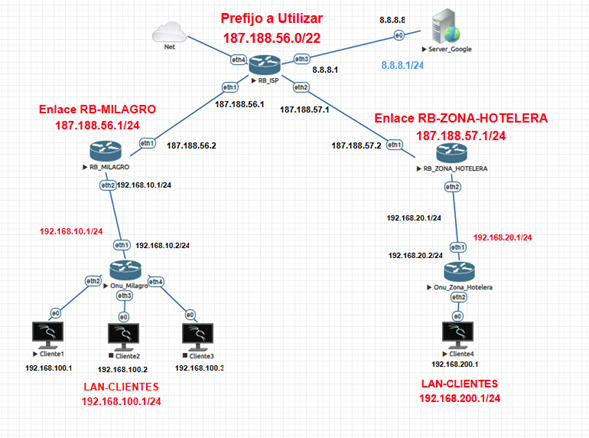

DIAGRAMA





RB_ISP

/interface wireless security-profilesset [ find default=yes ] supplicant-identity=MikroTik

/ip address

add address=8.8.8.1/24 comment=google interface=ether3 network=8.8.8.0

add address=187.188.56.1/24 comment="TO RB MILAGRO" interface=ether1 network=\

    187.188.56.0

add address=187.188.57.1/24 comment="TO ZONA HOTELERA" interface=ether2 \

    network=187.188.57.0

/ip dhcp-client

add disabled=no interface=ether4

/system identity

set name=RB_ISP

/tool romon

set enabled=yes

RB_MILAGRO

/interface wireless security-profilesset [ find default=yes ] supplicant-identity=MikroTik

/ip address

add address=187.188.56.2/24 comment="RB ISP" interface=ether1 network=\

    187.188.56.0

add address=192.168.10.1/24 comment="ONU MILAGRO" interface=ether2 network=\

    192.168.10.0

/ip dhcp-client

add disabled=no interface=ether1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether1

/ip route

add distance=1 gateway=187.188.56.1

/system identity

set name=RB_MILAGRO

/tool romon

set enabled=yes

RB_ZONA_HOTELERA

/interface wireless security-profilesset [ find default=yes ] supplicant-identity=MikroTik

/ip address

add address=187.188.57.2/24 comment=RB-ISP interface=ether8 network=\

    187.188.57.0

add address=192.168.20.1/24 comment="ONU ZH" interface=ether2 network=\

    192.168.20.0

/ip dhcp-client

add disabled=no interface=ether1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether8

/ip route

add distance=1 gateway=187.188.57.1

/system identity

set name=RB_ZONA_HOTELERA

/tool romon

set enabled=yes

ONU MILAGRO

/interface bridgeadd name=LAN-CLIENTES

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ip pool

add name=dhcp_pool4 ranges=192.168.100.2-192.168.100.254

/ip dhcp-server

add address-pool=dhcp_pool4 disabled=no interface=LAN-CLIENTES name=dhcp1

/interface bridge port

add bridge=LAN-CLIENTES interface=ether2

add bridge=LAN-CLIENTES interface=ether3

add bridge=LAN-CLIENTES interface=ether4

add bridge=LAN-CLIENTES interface=ether5

add bridge=LAN-CLIENTES interface=ether6

/ip address

add address=192.168.10.2/24 comment=RB-MILAGRO interface=ether1 network=\

    192.168.10.0

add address=192.168.100.1/24 comment="LAN CLIENTES" interface=LAN-CLIENTES \

    network=192.168.100.0

/ip dhcp-client

add disabled=no interface=ether1

/ip dhcp-server network

add gateway=0.0.0.1

add address=192.168.100.0/24 gateway=192.168.100.1

add address=192.168.101.0/24 gateway=192.168.101.1

/ip firewall nat

add action=masquerade chain=srcnat

/ip route

add distance=1 gateway=192.168.10.1

/system identity

set name=ONU_MILAGRO

/tool romon

set enabled=yes

ONU_ZONA_HOTELERA

/interface wireless security-profilesset [ find default=yes ] supplicant-identity=MikroTik

/ip address

add address=187.188.57.2/24 comment=RB-ISP interface=ether8 network=\

    187.188.57.0

add address=192.168.20.1/24 comment="ONU ZH" interface=ether2 network=\

    192.168.20.0

/ip dhcp-client

add disabled=no interface=ether1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether8

/ip route

add distance=1 gateway=187.188.57.1

/system identity

set name=RB_ZONA_HOTELERA

/tool romon

set enabled=yes
