Laboratorio IPv6 y Subneteo desde un /32 sin BGP

**Wendy** · 07/05/2025, 18:51

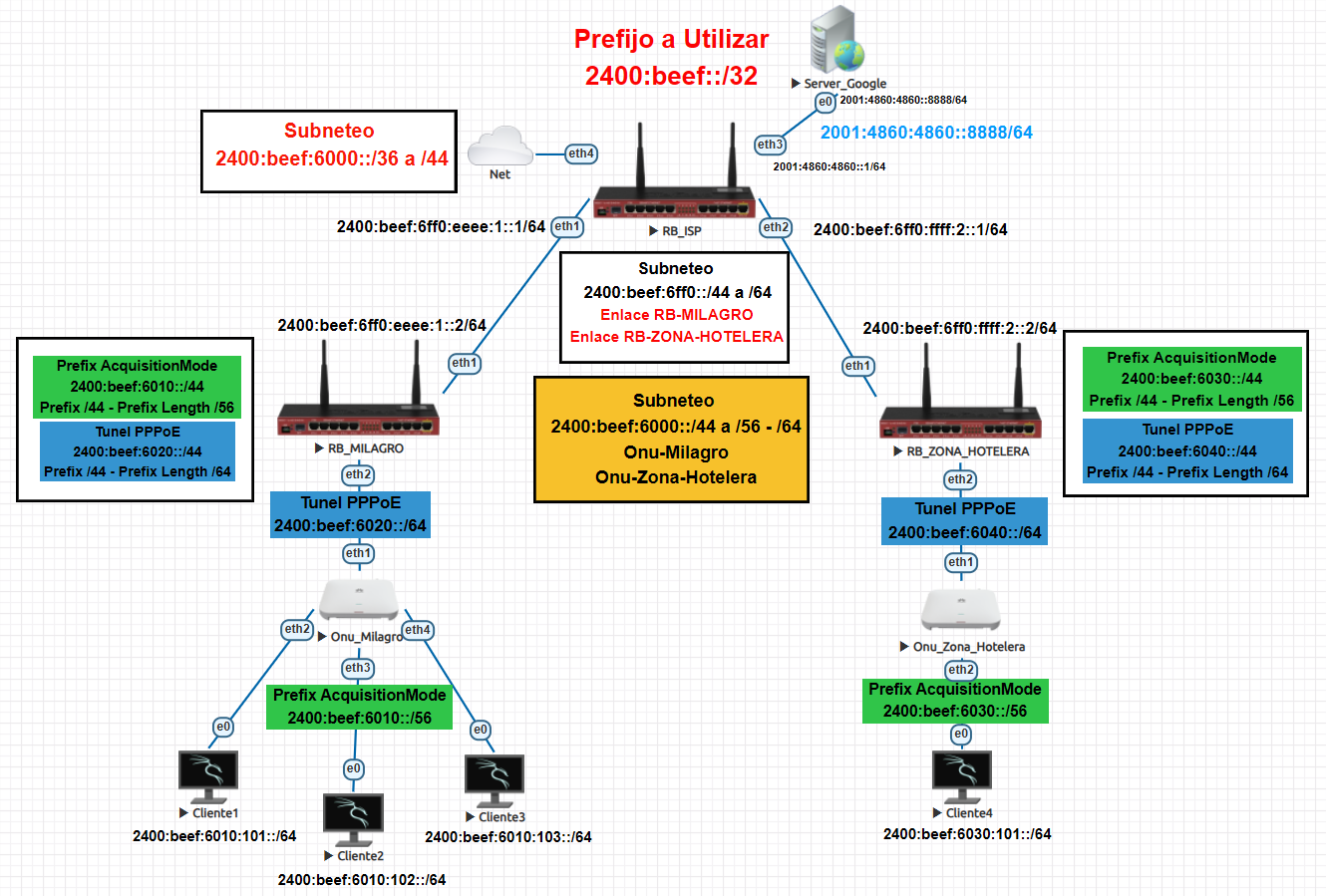

Nombre: diagrama_ipv6_sin_bgp.png
Visitas: 12
Tamaño: 141.8 KB

RB_ISP



/interface ethernet

set [ find default-name=ether1 ] name=to-RB-MILAGRO

set [ find default-name=ether2 ] name=to-RB-ZONA-HOTELERA

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ip dhcp-client

add disabled=no interface=ether4

/ip dns

set servers=2001:4860:4860::8888,2001:4860:4860::8844

/ipv6 address

add address=2400:beef:6ff0:eeee:1::1 advertise=no comment=to-RB-MILAGRO \

    interface=to-RB-MILAGRO

add address=2400:beef:6ff0:ffff:2::1 advertise=no comment=to-RB-ZONA-HOTELERA \

    interface=to-RB-ZONA-HOTELERA

add address=2001:4860:4860::1 advertise=no comment=to-Google interface=ether3

/ipv6 route

add comment="Prefijo /44 RB-MILAGRO" distance=1 dst-address=\

    2400:beef:6010::/44 gateway=2400:beef:6ff0:eeee:1::2

add comment="Prefijo /44 RB-ZONA-HOTELERA" distance=1 dst-address=\

    2400:beef:6030::/44 gateway=2400:beef:6ff0:ffff:2::2

/system identity

set name=RB-ISP

/tool romon

set enabled=yes

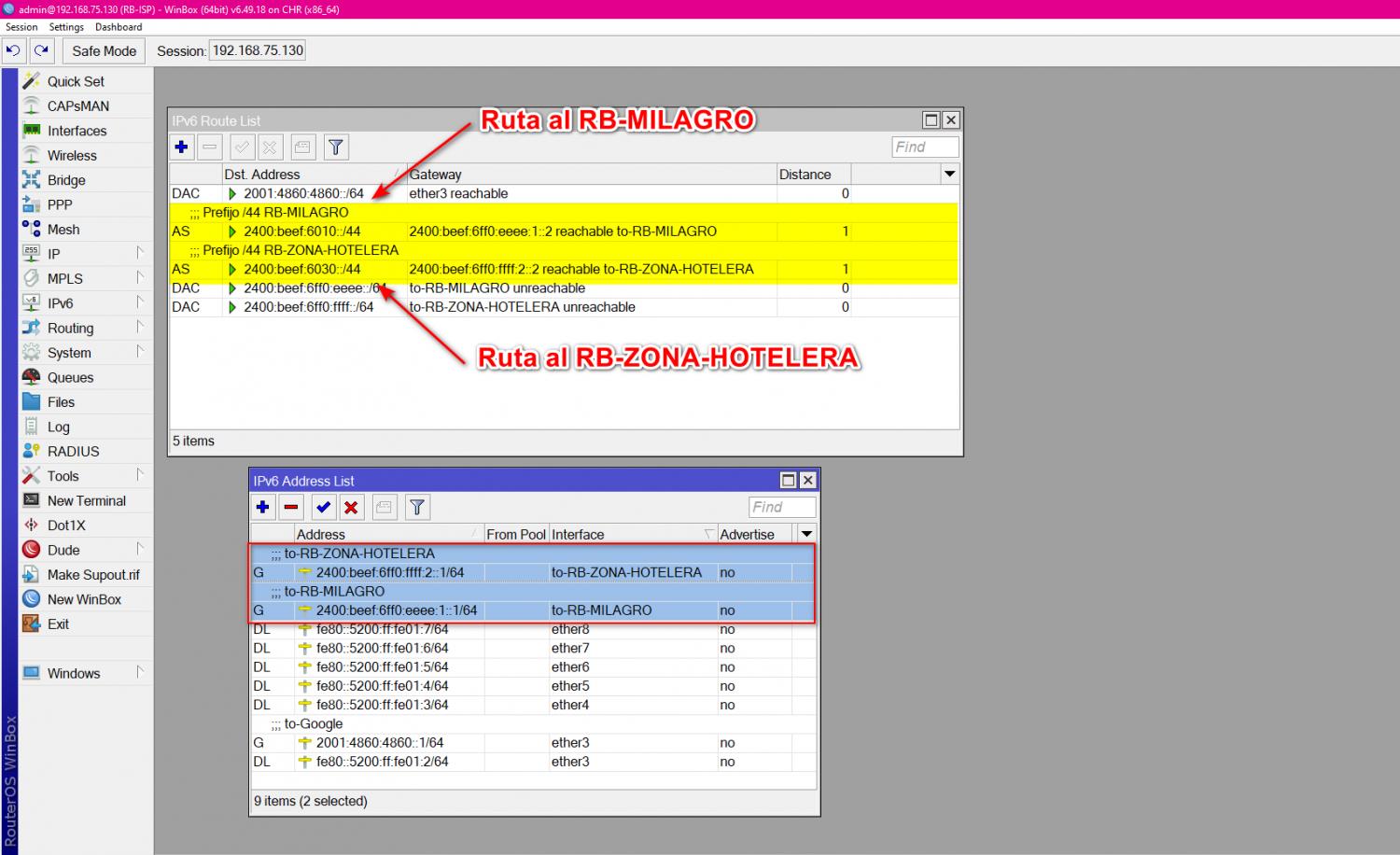

Nota

Es importante agregar las rutas con el /44 hacia el RB-MILAGRO y RB-ZONA-HOTELERA, ya que sin ello no podremos tener ping al Server_Google desde la pc del cliente.

Nombre: ruta_rb_isp_sin_bgp.jpg
Visitas: 12
Tamaño: 150.0 KB

RB_MILAGRO



/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 pool

add name=DHCPv6-PD-Pool-PrefixAcquisitionMode prefix=2400:beef:6010::/44 \

    prefix-length=56

add name=RemoteIPv6PrefixPool-TunelPPPoE prefix=2400:beef:6020::/44 \

    prefix-length=64

/ppp profile

add dhcpv6-pd-pool=DHCPv6-PD-Pool-PrefixAcquisitionMode name=\

    Server_PPPoE_RB_MILAGRO remote-ipv6-prefix-pool=\

    RemoteIPv6PrefixPool-TunelPPPoE

/interface pppoe-server server

add default-profile=Server_PPPoE_RB_MILAGRO disabled=no interface=ether2 \

    service-name=Server-PPPoE-RB-MILAGRO

/ip dhcp-client

add disabled=no interface=ether1

/ip dns

set servers=2001:4860:4860::8888,2001:4860:4860::8844

/ipv6 address

add address=2400:beef:6ff0:eeee:1::2 advertise=no comment=to-RB-ISP \

    interface=ether1

/ipv6 route

add distance=1 gateway=2400:beef:6ff0:eeee:1::1

/ppp secret

add name=cliente1 password=123 service=pppoe

/system identity

set name=RB-MILAGRO

/tool romon

set enabled=yes

RB_ZONA_HOTELERA



/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 pool

add name=RemoteIPv6PrefixPool-TunelPPPoE prefix=2400:beef:6040::/44 \

    prefix-length=64

add name=DHCPv6-PD-Pool-PrefixAcquisitionMode prefix=2400:beef:6030::/44 \

    prefix-length=56

/ppp profile

add dhcpv6-pd-pool=DHCPv6-PD-Pool-PrefixAcquisitionMode name=\

    Server_PPPoE_RB_ZONA_HOTELERA remote-ipv6-prefix-pool=\

    RemoteIPv6PrefixPool-TunelPPPoE

/interface pppoe-server server

add default-profile=Server_PPPoE_RB_ZONA_HOTELERA disabled=no interface=\

    ether2 service-name=Server-PPPoE-RB-ZONA-HOTELERA

/ip dhcp-client

add disabled=no interface=ether1

/ip dns

set servers=2001:4860:4860::8888,2001:4860:4860::8844

/ipv6 address

add address=2400:beef:6ff0:ffff:2::2 advertise=no comment=to-RB-ISP \

    interface=ether1

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/ipv6 route

add distance=1 gateway=2400:beef:6ff0:ffff:2::1

/ppp secret

add name=cliente4 password=123 service=pppoe

/system identity

set name=RB-ZONA-HOTELERA

/tool romon

set enabled=yes

ONU_MILAGRO



/interface bridge

add name=LAN_CLIENTES

/interface pppoe-client

add add-default-route=yes disabled=no interface=ether1 name=PPPoE-Onu-Milagro \

    password=123 user=cliente1

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 dhcp-server

add allow-dual-stack-queue=no interface=LAN_CLIENTES name=LAN_CLIENTES

/interface bridge port

add bridge=LAN_CLIENTES interface=ether2

add bridge=LAN_CLIENTES interface=ether3

add bridge=LAN_CLIENTES interface=ether4

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=::5200:ff:fe04:1 eui-64=yes from-pool=Pool-IPv6-RB-MILAGRO \

    interface=LAN_CLIENTES

/ipv6 dhcp-client

add add-default-route=yes interface=PPPoE-Onu-Milagro pool-name=\

    Pool-IPv6-RB-MILAGRO rapid-commit=no request=prefix use-peer-dns=no

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/system identity

set name=Onu-Milagro

/tool romon

set enabled=yes

ONU_ZONA_HOTELERA



/interface bridge

add name=LAN-CLIENTES

/interface pppoe-client

add add-default-route=yes disabled=no interface=ether1 name=\

    PPPoE-Onu-Zona-Hotelera password=123 user=cliente4

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 dhcp-server

add allow-dual-stack-queue=no interface=LAN-CLIENTES name=LAN_CLIENTES

/interface bridge port

add bridge=LAN-CLIENTES interface=ether2

add bridge=LAN-CLIENTES interface=ether3

add bridge=LAN-CLIENTES interface=ether4

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=::5200:ff:fe05:1 eui-64=yes from-pool=Pool-IPv6-RB-ZONA-HOTELERA \

    interface=LAN-CLIENTES

/ipv6 dhcp-client

add add-default-route=yes interface=PPPoE-Onu-Zona-Hotelera pool-name=\

    Pool-IPv6-RB-ZONA-HOTELERA rapid-commit=no request=prefix use-peer-dns=no

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/system identity

set name=Onu-Zona-Hotelera

/tool romon

set enabled=yes

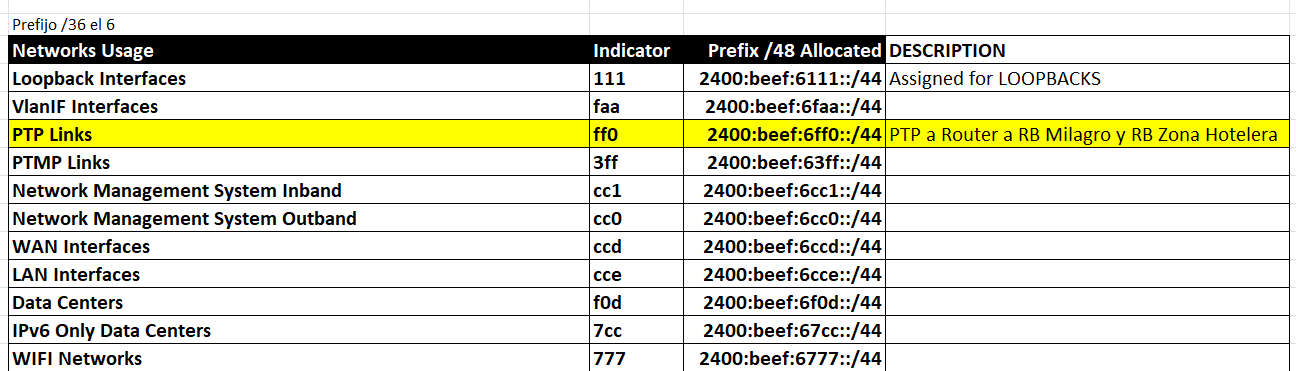

PLAN DE DIRECCIONAMIENTO

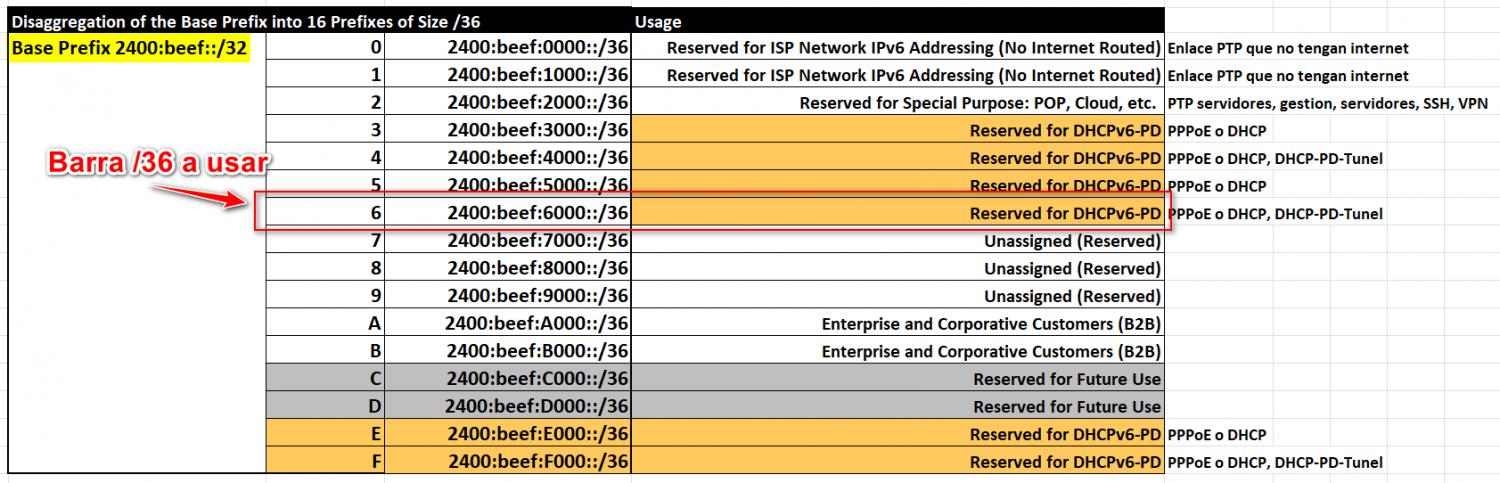

Por tema del laboratorio usamos el /36 ---> 2400:beef:6000::/36 pero lo recomendable es utilizar las recomendaciones de la tabla.

Nombre: base.jpg
Visitas: 10
Tamaño: 142.8 KB

Nombre: base.jpg
Visitas: 10
Tamaño: 142.8 KB

Nombre: overview.png
Visitas: 10
Tamaño: 23.6 KB

DIAGRAMA
_Exports_unetlab_export-20250509-020609.zip

**NEMUELOXTE** · 14/05/2025, 15:23

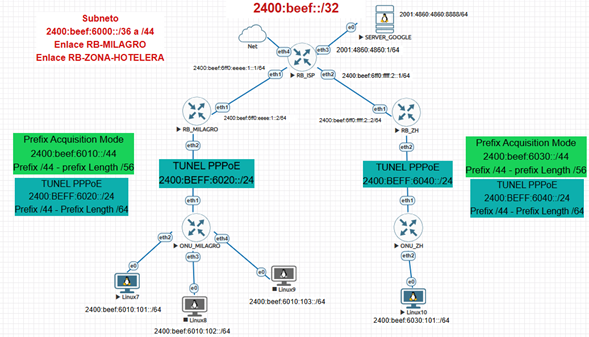

Laboratorio IPv6 y Subneteo desde un /32 sin BGP

Nombre: Imagen1.png
Visitas: 5
Tamaño: 158.4 KB

RB_ISP

/interface wireless security-profilesset [ find default=yes ] supplicant-identity=MikroTik

/ip dhcp-client

add disabled=no interface=ether4

/ipv6 address

add address=2001:4860:4860::1 advertise=no comment=google interface=ether3

add address=2400:beef:6ff0:eeee:1::1 advertise=no comment=RB_MILAGRO \

    interface=ether1

add address=2400:beef:6ff0:ffff:2::1 advertise=no comment=RB_ZH interface=\

    ether2

/ipv6 route

add comment="Prefijo /44 RB-MILAGRO" distance=1 dst-address=\

    2400:beef:6010::/44 gateway=2400:beef:6ff0:eeee:1::2

add comment="Prefijo /44 RB-ZONA-HOTELERA" distance=1 dst-address=\

    2400:beef:6030::/44 gateway=2400:beef:6ff0:ffff:2::2

/system identity

set name=RB-ISP

/tool romon

set enabled=yes

RB MILAGRO

/interface wireless security-profilesset [ find default=yes ] supplicant-identity=MikroTik

/ipv6 pool

add name=DHCPv6-PD-Pool-PrefixAcquisitionMode prefix=2400:beef:6010::/44 \

    prefix-length=56

add name=RemoteIPv6PrefixPool-TunelPPPoE prefix=2400:beef:6020::/44 \

    prefix-length=64

/ppp profile

add dhcpv6-pd-pool=DHCPv6-PD-Pool-PrefixAcquisitionMode name=\

    Server_PPPoE_RB_MILAGRO remote-ipv6-prefix-pool=\

    RemoteIPv6PrefixPool-TunelPPPoE

/interface pppoe-server server

add default-profile=Server_PPPoE_RB_MILAGRO disabled=no interface=ether2 \

    service-name=Server-PPPoE-RB-MILAGRO

/ip dhcp-client

add disabled=no interface=ether1

/ip dns

set servers=2001:4860:4860::8888,2001:4860:4860::8844

/ipv6 address

add address=2400:beef:6ff0:eeee:1::2 advertise=no comment=to-RB-ISP \

    interface=ether1

/ipv6 route

add distance=1 gateway=2400:beef:6ff0:eeee:1::1

/ppp secret

add name=cliente1 password=123 service=pppoe

/system identity

set name=RB-MILAGRO

/tool romon

set enabled=yes

RB_ZH

/interface wireless security-profilesset [ find default=yes ] supplicant-identity=MikroTik

/ipv6 pool

add name=RemoteIPv6PrefixPool-TunelPPPoE prefix=2400:beef:6040::/44 \

    prefix-length=64

add name=DHCPv6-PD-Pool-PrefixAcquisitionMode prefix=2400:beef:6030::/44 \

    prefix-length=56

/ppp profile

add dhcpv6-pd-pool=DHCPv6-PD-Pool-PrefixAcquisitionMode name=\

    Server_PPPoE_RB_ZONA_HOTELERA remote-ipv6-prefix-pool=\

    RemoteIPv6PrefixPool-TunelPPPoE

/interface pppoe-server server

add default-profile=Server_PPPoE_RB_ZONA_HOTELERA disabled=no interface=\

    ether2 service-name=Server-PPPoE-RB-ZONA-HOTELERA

/ip dhcp-client

add disabled=no interface=ether1

/ip dns

set servers=2001:4860:4860::8888,2001:4860:4860::8844

/ipv6 address

add address=2400:beef:6ff0:ffff:2::2 advertise=no comment=to-RB-ISP \

    interface=ether1

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/ipv6 route

add distance=1 gateway=2400:beef:6ff0:ffff:2::1

add distance=1 gateway=2400:beef:6ff0:ffff:2::1

/ppp secret

add name=cliente4 password=123 service=pppoe

/system identity

set name=RB-ZONA-HOTELERA

/tool romon

set enabled=yes

ONU_MILAGRO

/interface bridgeadd name=LAN_CLIENTES

/interface pppoe-client

add add-default-route=yes disabled=no interface=ether1 name=PPPoE-Onu-Milagro \

    password=123 user=cliente1

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 dhcp-server

add allow-dual-stack-queue=no interface=LAN_CLIENTES name=LAN_CLIENTES

/interface bridge port

add bridge=LAN_CLIENTES interface=ether2

add bridge=LAN_CLIENTES interface=ether3

add bridge=LAN_CLIENTES interface=ether4

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=::5200:ff:fe04:1 eui-64=yes from-pool=Pool-IPv6-RB-MILAGRO \

    interface=LAN_CLIENTES

/ipv6 dhcp-client

add add-default-route=yes interface=PPPoE-Onu-Milagro pool-name=\

    Pool-IPv6-RB-MILAGRO rapid-commit=no request=prefix use-peer-dns=no

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/system identity

set name=Onu-Milagro

/tool romon

set enabled=yes

ONU_ZH

/interface bridgeadd name=LAN-CLIENTES

/interface pppoe-client

add add-default-route=yes disabled=no interface=ether4 name=\

    PPPoE-Onu-Zona-Hotelera password=123 user=cliente4

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 dhcp-server

add allow-dual-stack-queue=no interface=LAN-CLIENTES name=LAN_CLIENTES

/interface bridge port

add bridge=LAN-CLIENTES interface=ether2

add bridge=LAN-CLIENTES interface=ether3

add bridge=LAN-CLIENTES disabled=yes interface=ether4

add bridge=LAN-CLIENTES interface=ether1

/ip dhcp-client

add interface=ether1

/ipv6 address

add address=::5200:ff:fe05:2 eui-64=yes from-pool=Pool-IPv6-RB-ZONA-HOTELERA \

    interface=LAN-CLIENTES

/ipv6 dhcp-client

add add-default-route=yes interface=PPPoE-Onu-Zona-Hotelera pool-name=\

    Pool-IPv6-RB-ZONA-HOTELERA rapid-commit=no request=prefix use-peer-dns=no

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/system identity

set name=Onu-Zona-Hotelera

/tool romon

set enabled=yes
