Laboratorio BGP ipv4 y subneteo de un /22 a /24


DIAGRAMA

Nombre: Imagen2.png Visitas: 3743 Tamaño: 223.3 KB

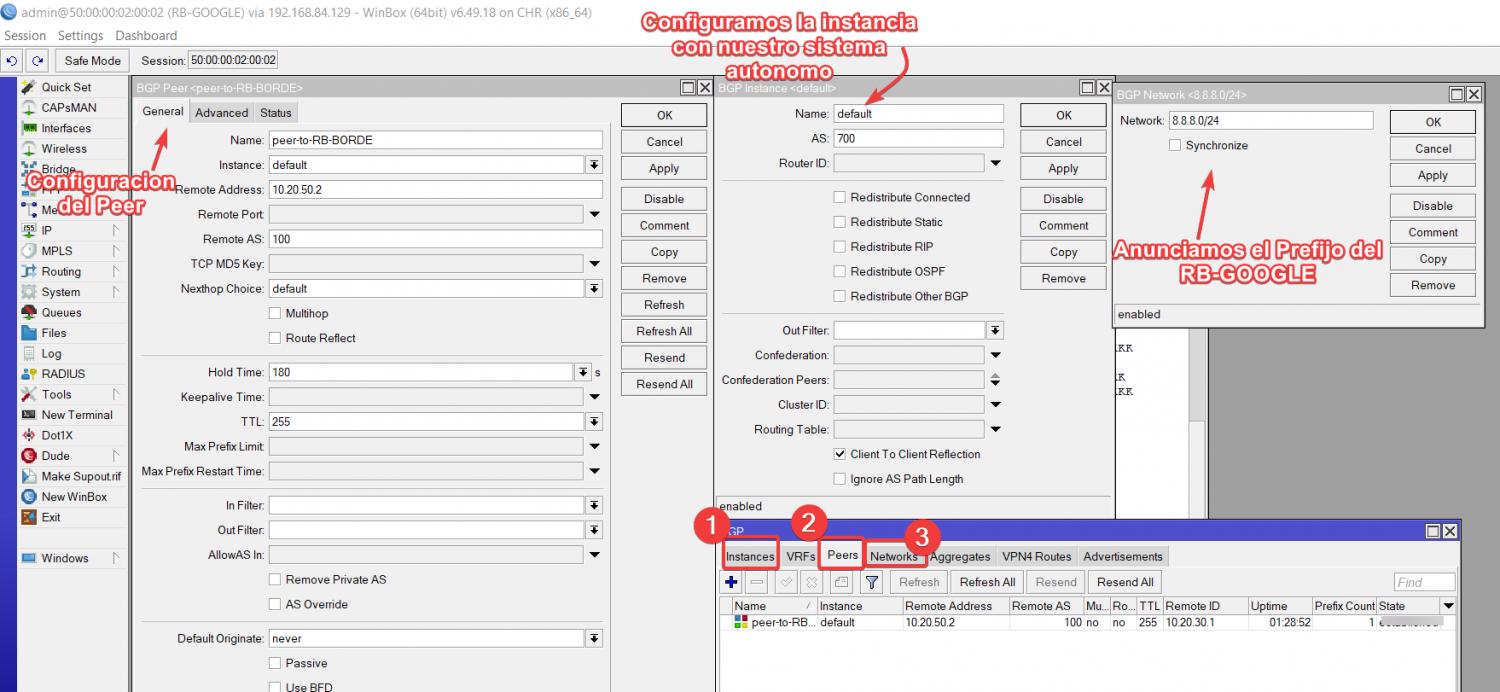

GOOGLE
/interface wireless security-profilesset [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=700

/ip address

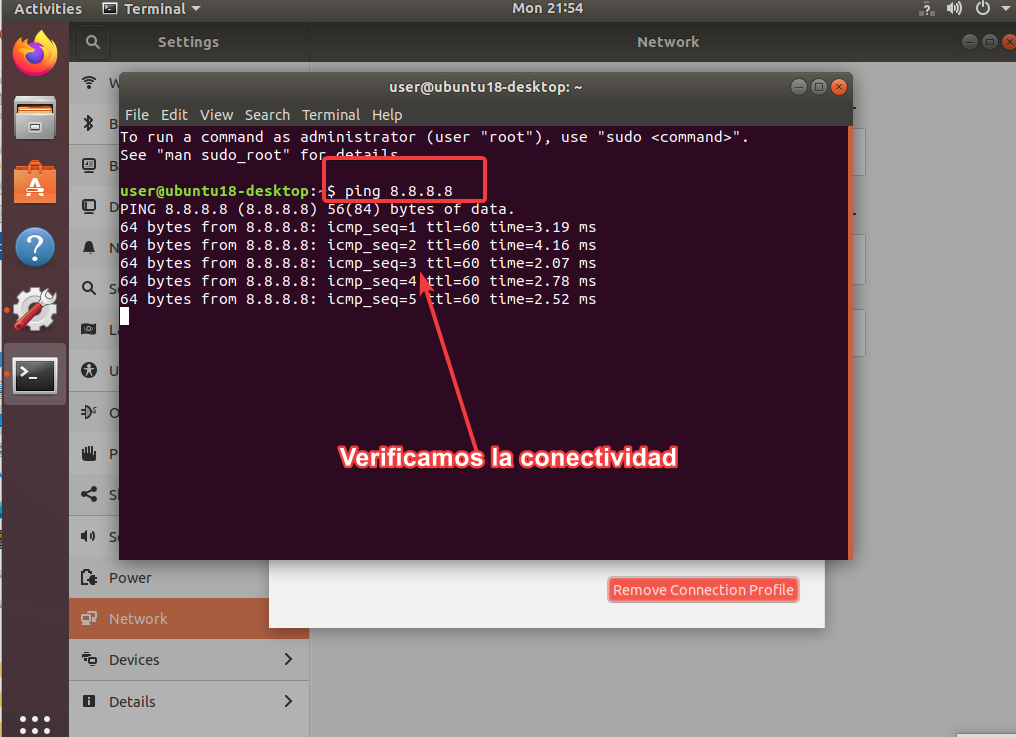

add address=8.8.8.7/24 comment=PTP-GOOGLE interface=ether1 network=8.8.8.0

add address=10.20.50.1/30 comment=TO_RB-BORDE interface=ether2 network=\

    10.20.50.0

/ip dhcp-client

add disabled=no interface=ether1

/routing bgp network

add network=8.8.8.0/24 synchronize=no

/routing bgp peer

add name=peer_RB-BORDE remote-address=10.20.50.2 remote-as=100

/system identity

set name=google

/tool romon

set enabled=yes


RB BORDE
/interface wireless security-profilesset [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=100

/ip address

add address=10.20.50.2/30 comment="TO GOOGLE" interface=ether2 network=\

    10.20.50.0

add address=190.9.108.1/24 comment="ENCORE URBI" interface=ether3 network=\

    190.9.108.0

add address=190.9.109.1/24 comment="ENCORE MILAGRO" interface=ether4 network=\

    190.9.109.0

/ip dhcp-client

add disabled=no interface=ether1

/routing bgp network

add network=190.9.108.0/22 synchronize=no

/routing bgp peer

add name=peer_GOOGLE remote-address=10.20.50.1 remote-as=700

/system identity

set name=BORDE

/tool romon

set enabled=yes

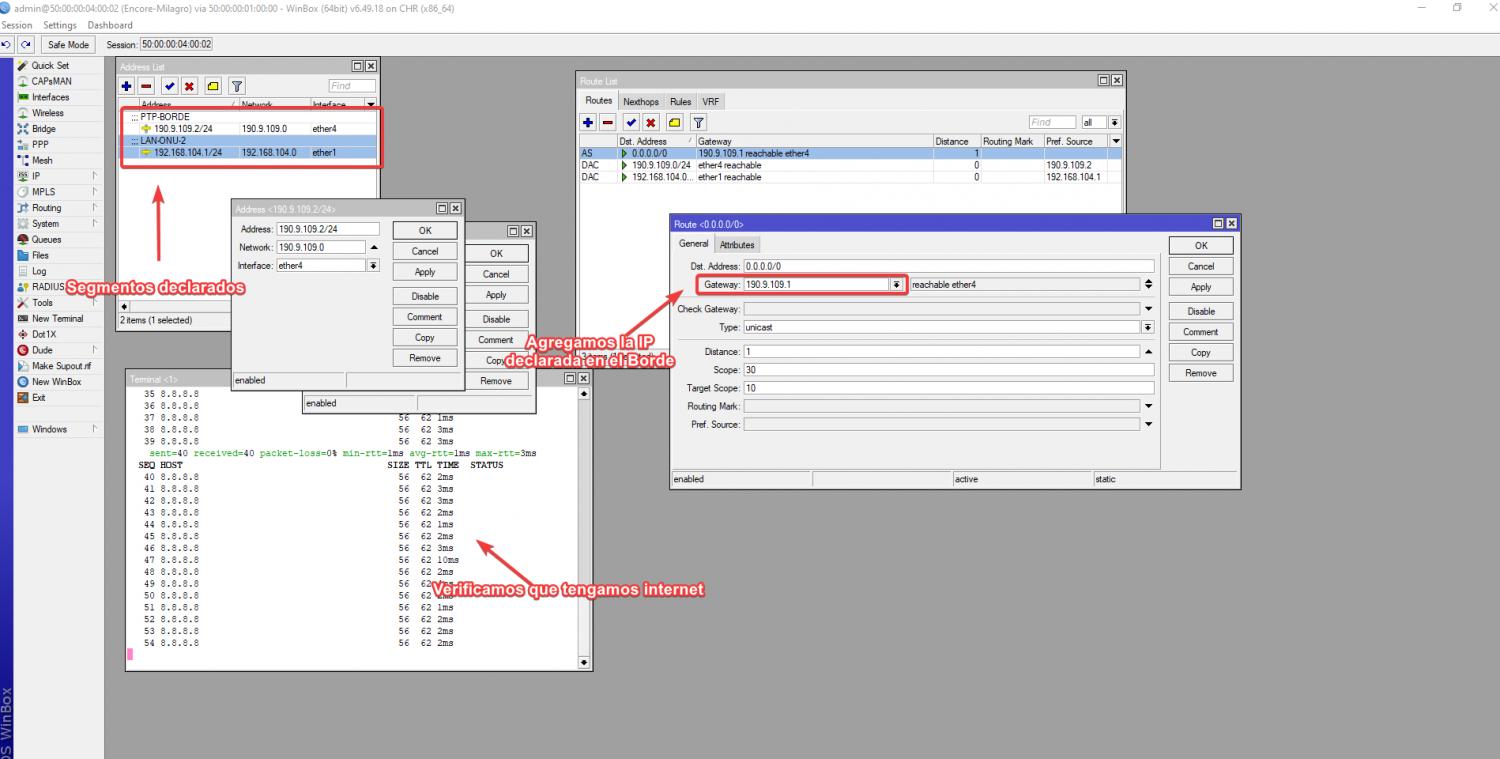

ENCORE MILAGRO
/interface ethernetset [ find default-name=ether9 ] name=ether8

set [ find default-name=ether8 ] name=ether9

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ip address

add address=190.9.109.2/24 comment=PTP-BORDE interface=ether3 network=\

    190.9.109.0

add address=192.168.104.1/24 comment=LAN-ONU-2 interface=ether1 network=\

    192.168.104.0

/ip dhcp-client

add disabled=no interface=ether1

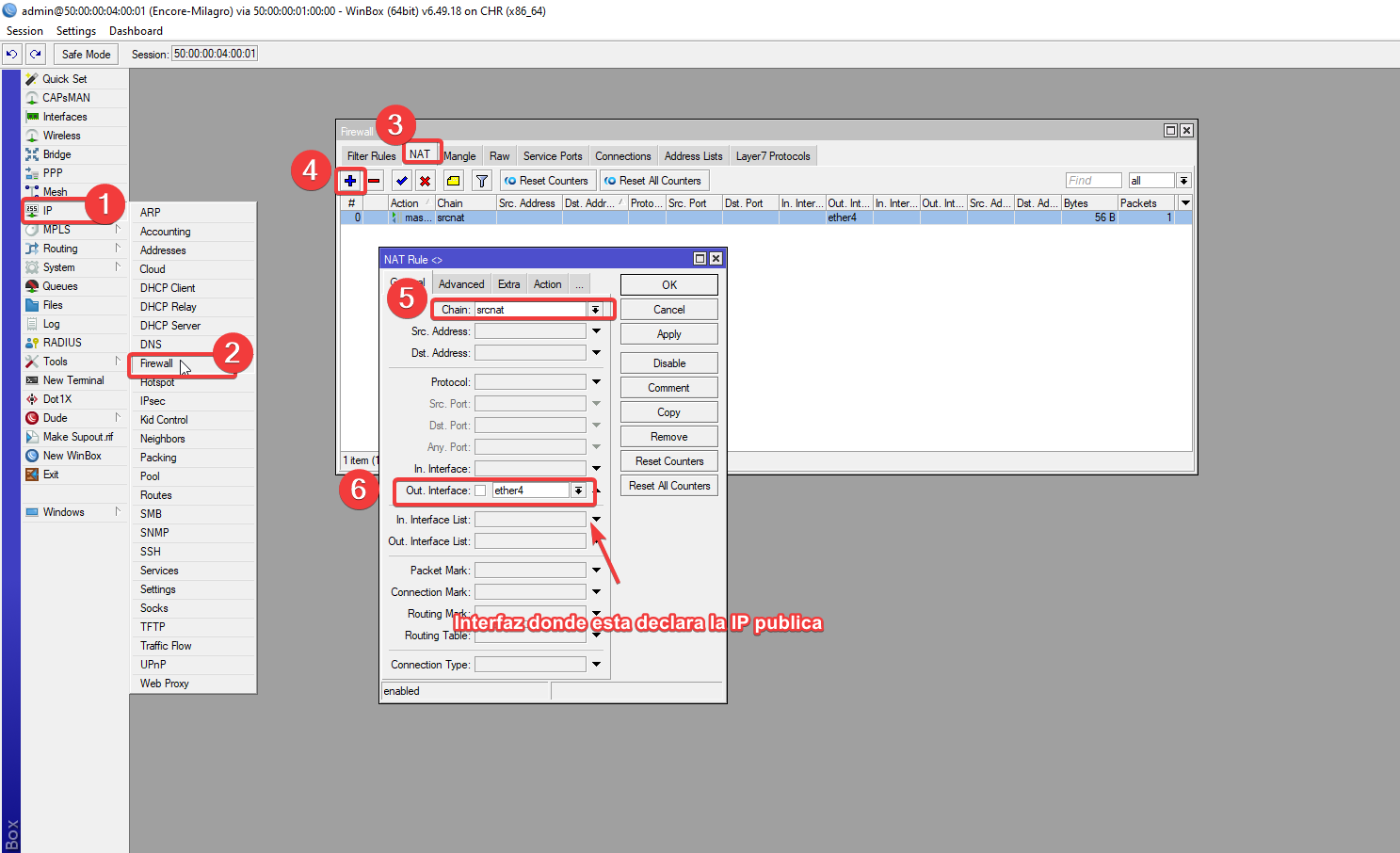

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether4

/ip route

add comment="RUTA HACIA INTERNET" distance=1 gateway=190.9.109.1

/system identity

set name=encore_milagro

/tool romon

set enabled=yes


ENCORE URBI
/interface wireless security-profilesset [ find default=yes ] supplicant-identity=MikroTik

/ip address

add address=190.9.108.2/24 comment=PTP-RB-BORDE interface=ether3 network=\

    190.9.108.0

add address=192.168.104.1/24 comment=LAN-ONU-2 interface=ether1 network=\

    192.168.104.0

/ip dhcp-client

add disabled=no interface=ether1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether3

/ip route

add comment="ruta hacia internet" distance=1 gateway=190.9.108.1

/system identity

set name=encore_urbi

/tool romon

set enabled=yes



ONU
/interface bridgeadd name=bridge1

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ip pool

add name=dhcp_pool0 ranges=192.168.100.2-192.168.100.254

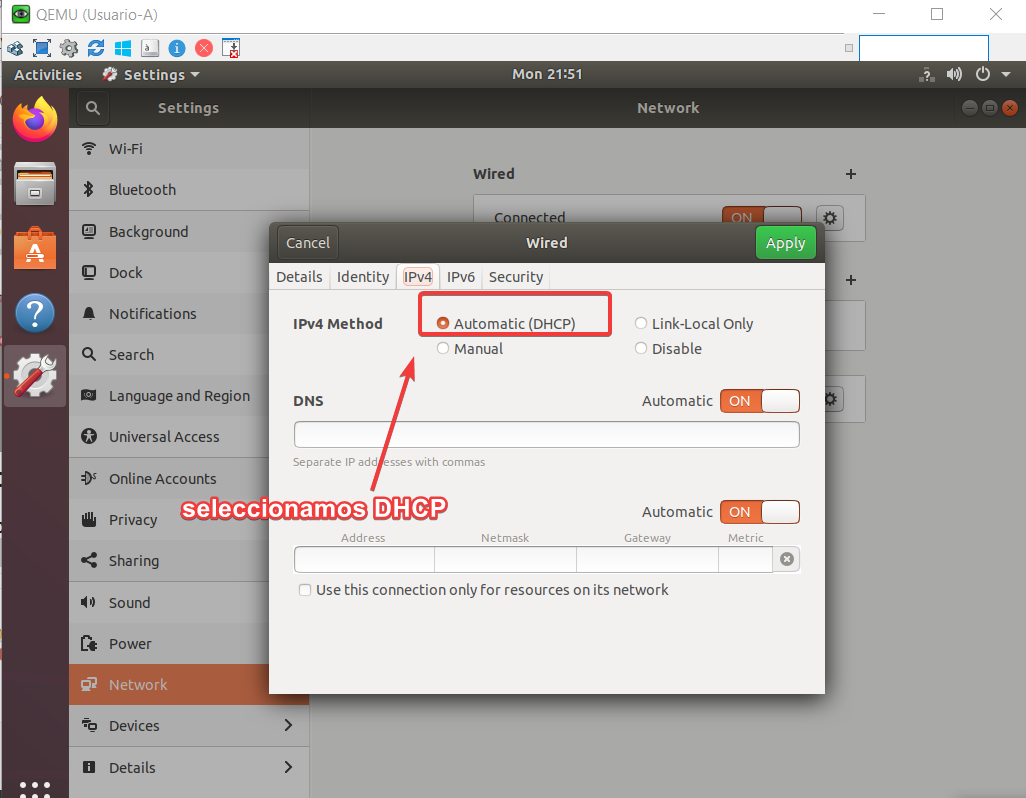

/ip dhcp-server

add address-pool=dhcp_pool0 disabled=no interface=bridge1 name=dhcp1

/interface bridge port

add bridge=bridge1 interface=ether2

add bridge=bridge1 interface=ether3

add bridge=bridge1 interface=ether4

/ip address

add address=192.168.104.2/24 comment="PTP ENCORE" interface=ether1 network=\

    192.168.104.0

add address=192.168.100.1/24 comment="RED LAN " interface=bridge1 network=\

    192.168.100.0

/ip dhcp-client

add disabled=no interface=ether1

/ip dhcp-server network

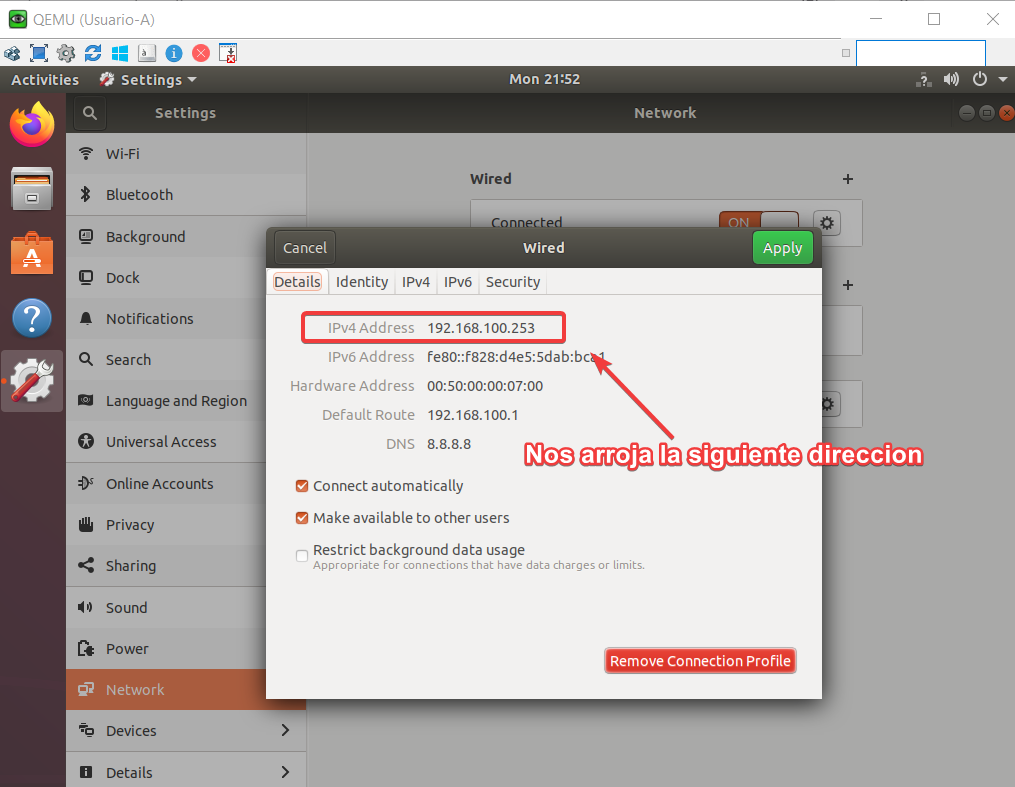

add address=192.168.100.0/24 gateway=192.168.100.1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether1

/ip route

add distance=1 gateway=192.168.104.1

/system identity

set name=onu

/tool romon

set enabled=yes


ONU-2
/interface bridgeadd name=bridge1

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ip pool

add name=dhcp_pool0 ranges=192.168.200.2-192.168.200.254

/ip dhcp-server

add address-pool=dhcp_pool0 disabled=no interface=bridge1 name=dhcp1

/interface bridge port

add bridge=bridge1 interface=ether2

add bridge=bridge1 interface=ether3

add bridge=bridge1 interface=ether4

/ip address

add address=192.168.224.2/24 comment="encore milagro" interface=ether1 \

    network=192.168.224.0

add address=192.168.200.1/24 comment="RED LAN" interface=bridge1 network=\

    192.168.200.0

/ip dhcp-client

add disabled=no interface=ether1

/ip dhcp-server network

add address=192.168.200.0/24 gateway=192.168.200.1

/ip firewall nat

add action=masquerade chain=srcnat out-interface=ether1

/ip route

add distance=1 gateway=192.168.224.1

/system identity

set name=onu-2

/tool romon

set enabled=yes
