Laboratorio bgp ipv6 simulando onu para clientes residenciales y comerciales

[NEMUELOXTE]

Laboratorio bgp ipv6 simulando onu para clientes residenciales y comerciales

Nota

En este laboratorio se simulara BGP con IPV6, pasando ONUS con el protocolo PPPoE a clientes residenciales y clientes comerciales

Nota

Los clientes Residenciales se encuentran en el servidor PPPoE con VLAN 910

Nota

Los clientes Comerciales se encuentran en el servidor PPPoE con VLAN 900

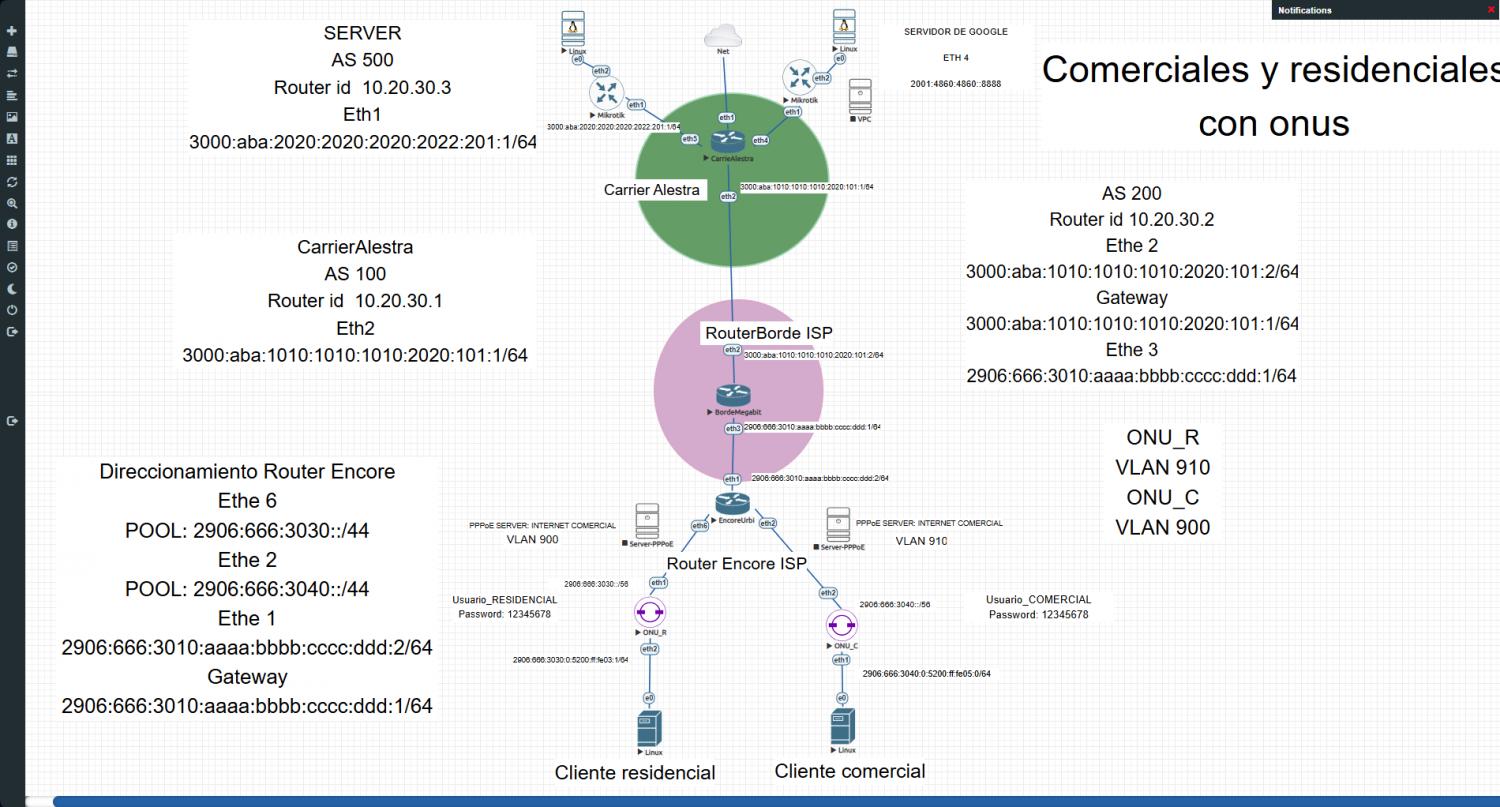

DIAGRAMA DEL LABORATORIO




ROUTER SERVER

/interface bridge

add name=lo

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=500 router-id=2.2.2.2

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=2606:4700:4700::1112 advertise=no comment=facebook interface=\

    ether2

add address=3000:aba:2020:2020:2020:2022:201:1 advertise=no comment=_alestra \

    interface=ether1

/routing bgp network

add network=2606:4700:4000::/36 synchronize=no

add network=3000:aba:2020:2020::/64 synchronize=no

/routing bgp peer

add address-families=ipv6 default-originate=always name=peer_alestra \

    remote-address=3000:aba:2020:2020:2020:2022:201:2 remote-as=100

/system identity

set name=SERVER

/tool romon

set enabled=yes

ROUTER GOOGLE

/interface ethernet

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=800 router-id=4.4.4.4

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=3000:aba:3030:3030:3030:2022:301:2 interface=ether1

add address=2001:4860:4860::8882 interface=ether2

/routing bgp network

add network=2001:4860:4000::/36 synchronize=no

add network=3000:aba:3030:3030::/64 synchronize=no

/routing bgp peer

add address-families=ipv6 name=peer_alestra remote-address=\

    3000:aba:3030:3030:3030:2022:301:1 remote-as=100

/system identity

set name=google

/tool romon

set enabled=yes

ROUTER CARRIER ALESTRA

/interface bridge

add name=lo

/interface ethernet

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=100 router-id=1.1.1.1

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=3000:aba:1010:1010:1010:2020:101:1 advertise=no comment=\

    TO_BORDEMEGABOT interface=ether7

add address=2001:4860:4860::8882/128 advertise=no comment=google disabled=yes \

    interface=ether2_

add address=3000:aba:2020:2020:2020:2022:201:2 advertise=no comment=to_server \

    interface=ether3

add address=3000:aba:3030:3030:3030:2022:301:1 advertise=no comment=google \

    interface=ether4_

/routing bgp network

add network=3000:aba:1010:1010::/64 synchronize=no

/routing bgp peer

add address-families=ipv6 default-originate=always name=CPE_BM \

    remote-address=3000:aba:1010:1010:1010:2020:101:2 remote-as=200

add address-families=ipv6 default-originate=always name=peer_server \

    remote-address=3000:aba:2020:2020:2020:2022:201:1 remote-as=500

add address-families=ipv6 name=peer_google remote-address=\

    3000:aba:3030:3030:3030:2022:301:2 remote-as=800 update-source=ether2_

/system identity

set name=CarrierAlestra

/tool romon

set enabled=yes

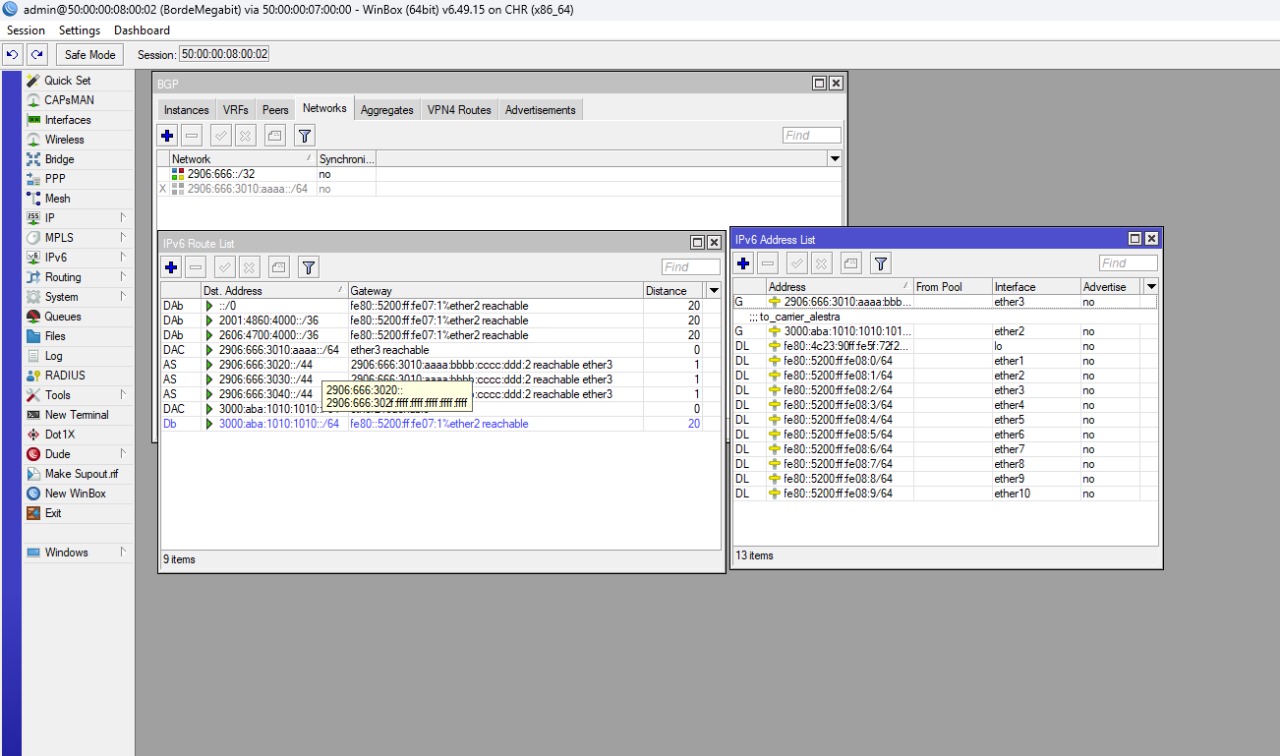

ROUTER BORDEMEGABIT

/interface bridge

add name=lo

/interface ethernet

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/routing bgp instance

set default as=200 router-id=3.3.3.3

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add address=3000:aba:1010:1010:1010:2020:101:2 advertise=no comment=\

    to_carrier_alestra interface=ether2

add address=2906:666:3010:aaaa:bbbb:cccc:ddd:1 advertise=no interface=ether3

/ipv6 route

add distance=1 dst-address=2906:666:3020::/44 gateway=\

    2906:666:3010:aaaa:bbbb:cccc:ddd:2

add distance=1 dst-address=2906:666:3030::/44 gateway=\

    2906:666:3010:aaaa:bbbb:cccc:ddd:2

add distance=1 dst-address=2906:666:3040::/44 gateway=\

    2906:666:3010:aaaa:bbbb:cccc:ddd:2

/routing bgp network

add disabled=yes network=2906:666:3010:aaaa::/64 synchronize=no

add network=2906:666::/32 synchronize=no

/routing bgp peer

add address-families=ipv6 default-originate=always name=WAN_IPv6 \

    remote-address=3000:aba:1010:1010:1010:2020:101:1 remote-as=100

/system identity

set name=BordeMegabit

/tool romon

set enabled=yes

ROUTER ENCORE

/interface ethernet

/interface vlan

add interface=ether2 name=VLAN900 vlan-id=900

add interface=ether6 name=VLAN910 vlan-id=910

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 pool

add name=POOL_CLIENTES_E6 prefix=2906:666:3030::/44 prefix-length=56

add name=POOL_CLIENTES_E2 prefix=2906:666:3040::/44 prefix-length=56

/ppp profile

set *0 remote-ipv6-prefix-pool=POOL_CLIENTES_E6

add change-tcp-mss=yes dhcpv6-pd-pool=POOL_CLIENTES_E2 name=profile_OLT_E2 \

    use-encryption=yes

add change-tcp-mss=yes dhcpv6-pd-pool=POOL_CLIENTES_E6 name=profile_OLT_E6 \

    use-encryption=yes

/interface pppoe-server server

add default-profile=profile_OLT_E2 disabled=no interface=VLAN900 \

    service-name="INTERNET COMERCIAL"

add default-profile=profile_OLT_E6 disabled=no interface=VLAN910 \

    service-name="INTERNET RESIDENCIAL"

/ip dhcp-client

add disabled=no interface=ether1

/ip dns

set servers=2001:4860:4860::8888,2001:4860:4860::8844

/ipv6 address

add address=2906:666:3010:aaaa:bbbb:cccc:ddd:2 advertise=no interface=ether1

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/ipv6 route

add distance=1 gateway=2906:666:3010:aaaa:bbbb:cccc:ddd:1

add distance=1 gateway=2906:666:3010:aaaa:bbbb:cccc:ddd:1

/ppp secret

add name=usuario1 password=12345678 profile=profile_OLT_E2 service=pppoe

add name=usuario2 password=12345678 profile=profile_OLT_E6 service=pppoe

/system identity

set name=EncoreUrbi

/tool romon

set enabled=yes

ROUTER ONU_R

/interface ethernet

/interface vlan

add interface=ether1 name=VLAN910 vlan-id=910

/interface pppoe-client

add add-default-route=yes disabled=no interface=VLAN910 name=pppoe-out1 \

    password=12345678 use-peer-dns=yes user=usuario2

add add-default-route=yes interface=VLAN910 name=pppoe-out2 password=12345678 \

    use-peer-dns=yes user=usuario2

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 dhcp-server

add address-pool=LAN interface=ether2 name=server1

/ip dhcp-client

add disabled=no interface=ether1

/ip dns

set servers=2001:4860:4860::8888,2001:4860:4860::8844

/ipv6 address

add address=::5200:ff:fe03:1 eui-64=yes from-pool=LAN interface=ether2

/ipv6 dhcp-client

add interface=pppoe-out1 pool-name=LAN request=prefix

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/system identity

set name=ONU_R

/tool romon

set enabled=yes

ROUTER ONU_C

/interface ethernet

/interface vlan

add interface=ether2 name=VLAN900 vlan-id=900

/interface pppoe-client

add add-default-route=yes disabled=no interface=VLAN900 name=pppoe-out1 \

    password=12345678 use-peer-dns=yes user=usuario1

/interface wireless security-profiles

set [ find default=yes ] supplicant-identity=MikroTik

/ipv6 dhcp-server

add address-pool=LAN interface=ether1 name="/ipv6 address"

/ip dhcp-client

add disabled=no interface=ether1

/ipv6 address

add from-pool=LAN interface=ether1

/ipv6 dhcp-client

add add-default-route=yes interface=pppoe-out1 pool-name=LAN request=prefix

/ipv6 nd

set [ find default=yes ] other-configuration=yes

/system identity

set name=ONU_C

/tool romon

set enabled=yes

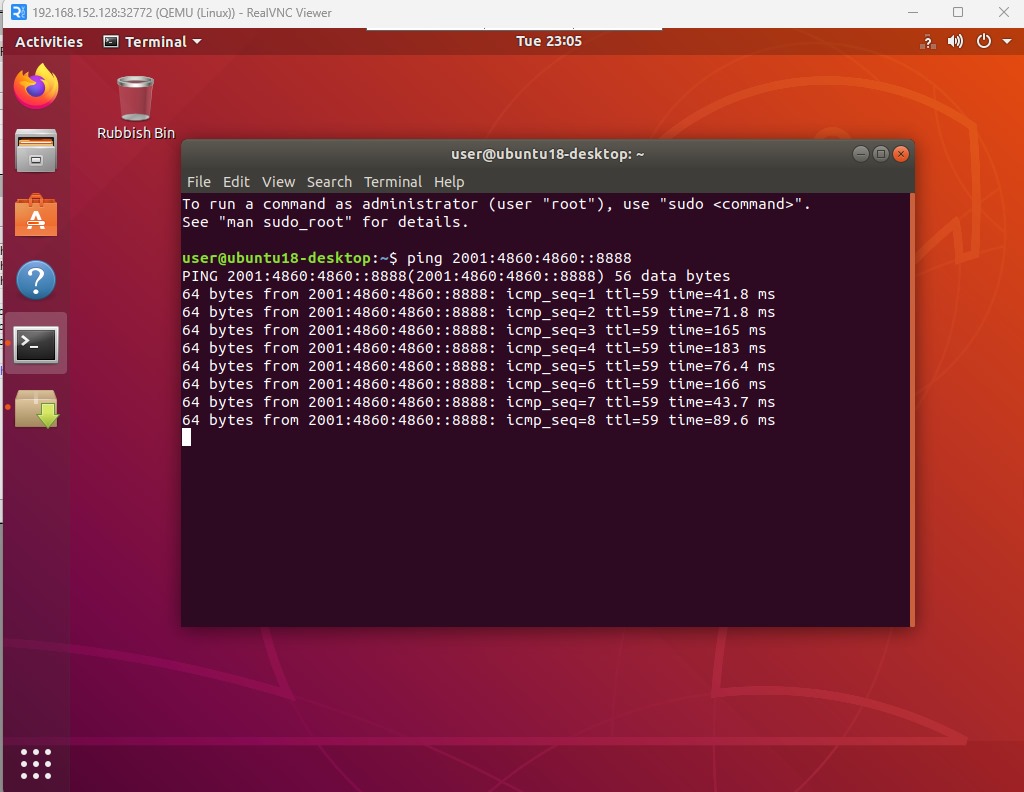

PING A CLIENTE ONU_R

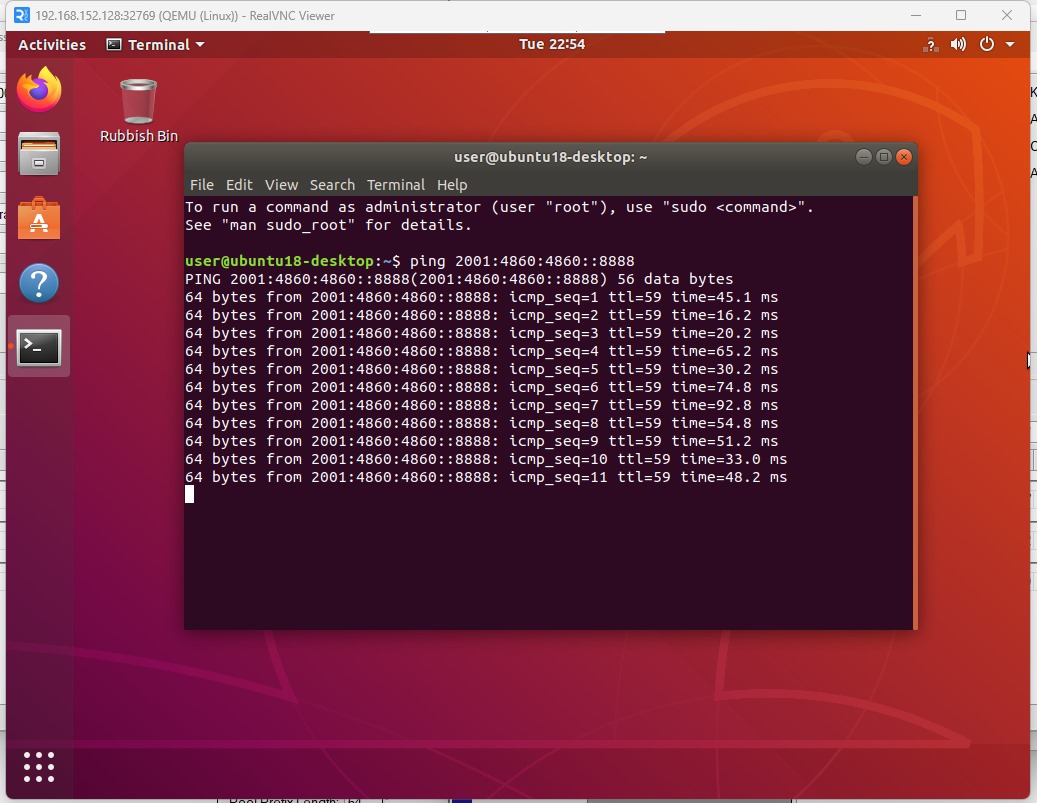

PING A CLIENTES ONU_C

Nota

Las Pc estan configurado con DHCPv6
